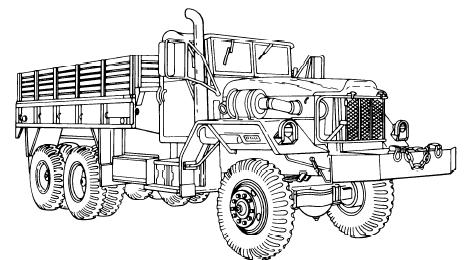

M54A1 CARGO TRUCK 6X6 LWB
NSN with winch: 2320-00-086-7482
NSN w/o winch: 2320-00-086-7481
NSN w/o winch: 2320-00-086-7481
TM numbers:
9-2320-211-Series (Nov 1977)
9-2320-211-Series (Nov 1977)
Expanded Description:
Horsepower: 205 bhp @ 2,100 rpm
Transmission: Manual; 5 Fwd, 1 Rev
VEHICLE DATA
Type Classification & Date: Std B, 1963
Replaced by: M813
Life Expectancy: 20 Years
Payload: 10,000 lb
Towed Load Allowance: 15,000 lb
Air Transportability: Phase II
EQUIPMENT OPTIONS
Kits: Bow and Tarp, Hot Water Personnel
Heater, Arctic Winterization,
Deep Water Fording, Electric Brake,
Windshield Washer
Electrical System: 24 Volt
Winch: Yes
Tires: 11:00 x 20, 12-ply
Brakes: Air over hydraulic
Blackout Lights: Yes
Horsepower: 205 bhp @ 2,100 rpm
Transmission: Manual; 5 Fwd, 1 Rev
VEHICLE DATA
Type Classification & Date: Std B, 1963
Replaced by: M813
Life Expectancy: 20 Years
Payload: 10,000 lb
Towed Load Allowance: 15,000 lb
Air Transportability: Phase II
EQUIPMENT OPTIONS
Kits: Bow and Tarp, Hot Water Personnel
Heater, Arctic Winterization,
Deep Water Fording, Electric Brake,
Windshield Washer
Electrical System: 24 Volt
Winch: Yes
Tires: 11:00 x 20, 12-ply
Brakes: Air over hydraulic
Blackout Lights: Yes
Additional Notes:
