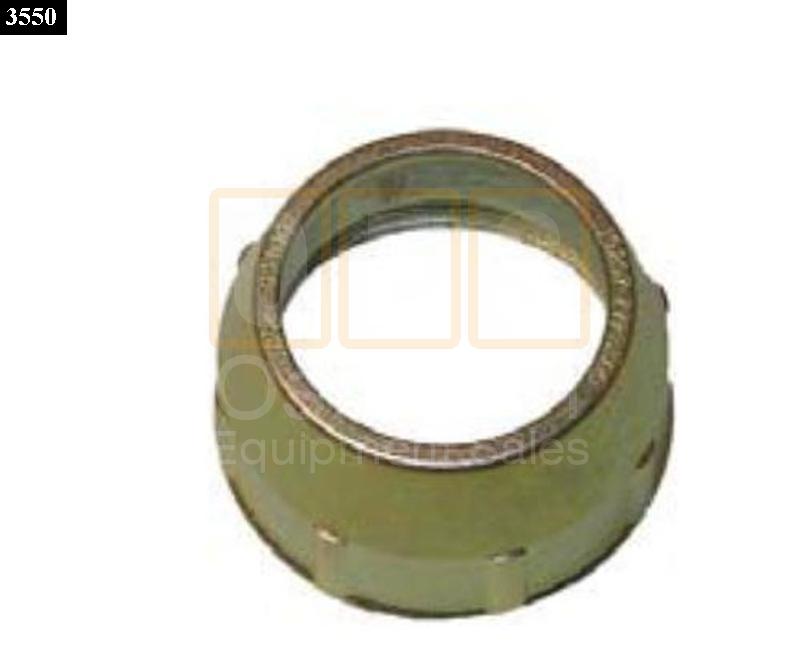

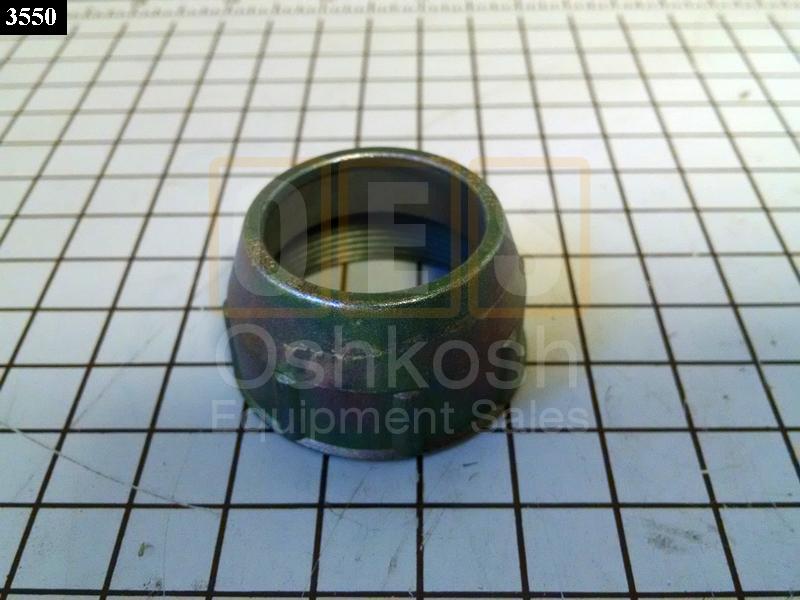

Coupling Nut

$6.29
Coupling Nut

  • Military Part Number: 7723309
  • Military Description:

    NUT,PLAIN,KNURLED

  • National Stock Number (NSN): 5310-00-393-6685, 5310003936685
  • Federal Supply Class (FSC): 5310 (Nuts and Washers)
  • National Item Identification Number (NIIN): 003936685
  • Federal Stock Number (FSN): 5310-393-6685, 53103936685

Coupling Nut for Military Trucks and Trailers.
NUT DIAMETER             1.764 INCHES MINIMUM AND 1.773 INCHES MAXIMUM
NUT THICKNESS           1.000 INCHES NOMINAL
KNURL WIDTH               0.526 INCHES MINIMUM AND 0.536 INCHES MAXIMUM
NOMINAL THREAD SIZE 1.625 INCHES
THREAD QUANTITY PER INCH       18

This item fits the following series and models of equipment:

M151 Jeep (1/4 Ton)

M151 , M151A1 , M151A1C , M151A2 , M151A2 W/ROPS , M718 , M718A1 , M825

M38 Jeep (1/4 Ton)

M38

M38A1 Jeep (1/4 Ton) (JEEP)

M170 , M38A1 , M38A1C

M39 / M54 Series (5-Ton)

M139 , M139A2F , M139C , M139D , M139F , M246 , M246A2 , M291A2 , M291A2C , M291A2D , M328A1 , M40 W/WINCH , M40 WO/WINCH , M41 W/WINCH , M41 WO/WINCH , M51 W/WINCH , M51 WO/WINCH , M51A2 W/WINCH , M51A2 WO/WINCH , M52 W/WINCH , M52 WO/WINCH , M52A1 W/WINCH , M52A1 WO/WINCH , M52A2 W/WINCH , M52A2 WO/WINCH , M54 W/WINCH , M54 WO/WINCH , M543 , M543A1 , M543A2 , M54A1 W/WINCH , M54A1 WO/WINCH , M54A2 W/WINCH , M54A2 WO/WINCH , M54A2C W/WINCH , M54A2C WO/WINCH , M55 W/WINCH , M55 WO/WINCH , M55A2 W/WINCH , M55A2 WO/WINCH , M62 , M748A2

M44 / M35 Series (2.5-Ton)

M108 W/WINCH , M108 WO/WINCH , M109 W/WINCH , M109 WO/WINCH , M109A1 W/WINCH , M109A1 WO/WINCH , M109A2 W/WINCH , M109A2 WO/WINCH , M109A3 W/WINCH , M109A3 WO/WINCH , M185 WO/WINCH , M185A1 WO/WINCH , M185A2 W/WINCH , M185A2 WO/WINCH , M185A3 W/WINCH , M185A3 WO/WINCH , M275 W/WINCH , M275 WO/WINCH , M275A1 WO/WINCH , M275A2 W/WINCH , M292 W/WINCH , M292 WO/WINCH , M292A1 WO/WINCH , M292A2 W/WINCH , M292A2 WO/WINCH , M292A5 WO/WINCH , M34 W/WINCH , M34 WO/WINCH , M342A2 W/WINCH , M342A2 WO/WINCH , M35 W/WINCH , M35 WO/WINCH , M35A1 W/WINCH , M35A1 WO/WINCH , M35A2 W/WINCH , M35A2 WO/WINCH , M35A2C W/WINCH , M35A2C WO/WINCH , M36 W/WINCH , M36 WO/WINCH , M36A2 W/WINCH , M36A2 WO/WINCH , M36C W/WINCH , M36C WO/WINCH , M47 W/WINCH , M47 WO/WINCH , M48 W/WINCH , M48 WO/WINCH , M49 W/WINCH , M49 WO/WINCH , M49A1C W/WINCH , M49A1C WO/WINCH , M49A2C W/WINCH , M49A2C WO/WINCH , M49C W/WINCH , M49C WO/WINCH , M50 W/WINCH , M50 WO/WINCH , M50A1 W/WINCH , M50A1 WO/WINCH , M50A2 W/WINCH , M50A2 WO/WINCH , M50A3 W/WINCH , M50A3 WO/WINCH , M59 W/WINCH , M59 WO/WINCH , M60 WO/WINCH , M756 W/WINCH , M756A2 W/WINCH , M764 W/WINCH , V17A/MTQ W/WINCH , V18A/MTQ W/WINCH

M44A3 / M35A3 Series (2.5-Ton)

M35A3 W/WINCH , M35A3 WO/WINCH , M35A3C W/WINCH , M35A3C WO/WINCH , M36A3 W/WINCH , M36A3 WO/WINCH

M809 Series (5-Ton)

M813 W/WINCH , M813 WO/WINCH , M813A1 W/WINCH , M813A1 WO/WINCH , M814 W/WINCH , M814 WO/WINCH , M815 , M816 , M817 W/WINCH , M817 WO/WINCH , M818 W/WINCH , M818 WO/WINCH , M819 , M820 , M820A1 , M820A2 , M821

M880 Dodge (1.25-Ton)

M880 , M881 , M882 , M883 , M884 , M885 , M886 , M887 , M888 , M890 , M891 , M892 , M893

M915 Series (14-20 Ton)

M915 , M916 , M917 , M918 , M919 , M920

M915A1 (14 Ton)

M915A1

M915A2 Series (14-20 Ton)

M915A2 , M916A1 , M916A2 , M917A1 , M917A1 W/MCS

M915A3 Series (14-20 Ton)

M915A3 , M916A3 , M917A2 , M917A2 W/MCS

M915A4 Series (14-Ton)

M915A4 , M915A4R2

M939 Series (5-Ton)

M923 , M923A1 , M923A2 , M924 , M924A1 , M925 , M925A1 , M925A2 , M926 , M926A1 , M927 , M927A1 , M927A2 , M928 , M928A1 , M928A2 , M929 , M929A1 , M929A2 , M930 , M930A1 , M930A2 , M931 , M931A1 , M931A2 , M932 , M932A1 , M932A2 , M934 , M934A1 , M934A2 , M935 W/HLG , M935A1 W/HLG , M935A2 , M936 , M936A1 , M936A2 , M941 W/WINCH , M941 WO/WINCH , M941A1 W/WINCH , M941A1 WO/WINCH , M945 W/WINCH , M945A1 W/WINCH

M977 HEMTT (10-Ton 8X8)

M977 W/WINCH , M977 WO/WINCH , M978 W/WINCH , M978 WO/WINCH , M983 , M984 , M984A1 , M985 W/WINCH , M985 WO/WINCH , M985E1

M998 HMMWV (HUMVEE)

M1025 , M1025A1 , M1025A2 , M1026 , M1026A1 , M1035 , M1035A1 , M1035A2 , M1037 , M1038 , M1038A1 , M1042 , M1043 , M1043A1 , M1043A2 , M1044 , M1044A1 , M1045 , M1045A1 , M1045A2 , M1046 , M1046A1 , M1097 , M1097A1 , M1097A2 , M1121 , M1123 , M966 , M966A1 , M996 , M996A1 , M997 , M997A1 , M997A2 , M998 , M998A1

Part Diagram(s) for all related series equipment

Part Diagram(s)
