$18.66

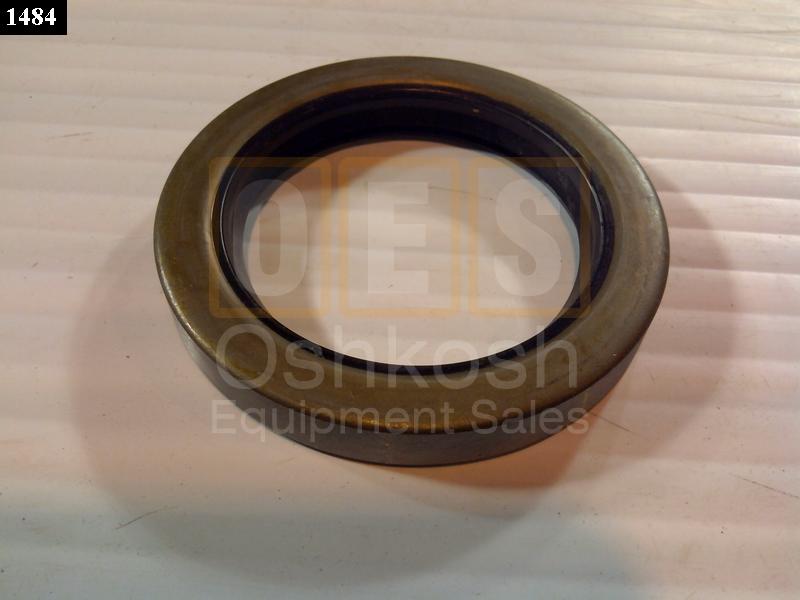

Oil Seal

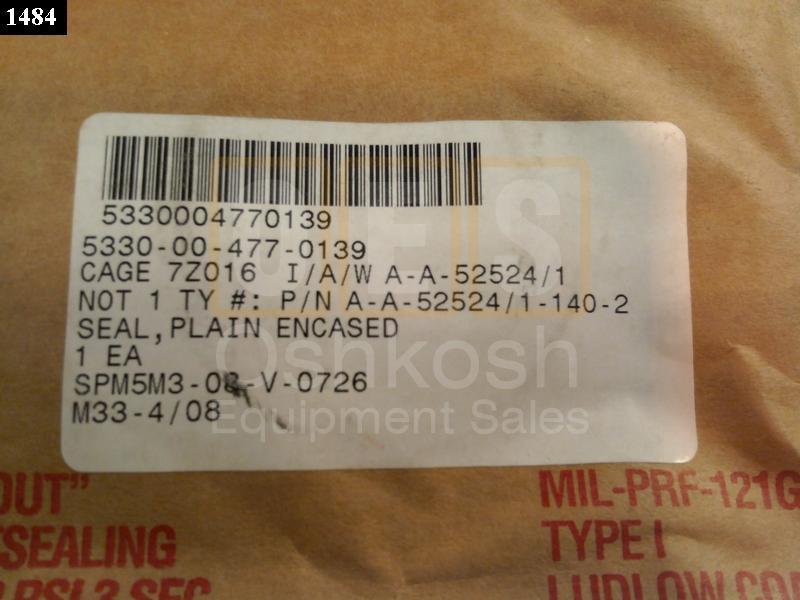

- Military Part Number: A-A-52524/1-140-2
- Military Description:
SEAL,PLAIN ENCASED
- National Stock Number (NSN): 5330-00-477-0139, 5330004770139
- Federal Supply Class (FSC): 5330 (Packing and Gasket Materials)
- National Item Identification Number (NIIN): 004770139
- Federal Stock Number (FSN): 5330-477-0139, 53304770139
- Alternate Numbers: MS51000-140-2
SEAL,PLAIN ENCASED: Unknown Application
ACCOMMODATED SHAFT DIAMETER 2.625 INCHES NOMINAL
SEAL WIDTH 0.485 INCHES MINIMUM AND 0.515
INCHES MAXIMUM
CASE STYLE 1 SQUARE
HOUSING BORE DIAMETER 3.750 INCHES NOMINAL
SEALING ELEMENT STYLE 4 ANGULAR
MATERIAL RUBBER SILICONE CLASS Q SEALING
ELEMENT
MATERIAL DOCUMENT AND MIL-S-45005,CL 2 MIL SPEC SINGLE
CLASSIFICATION MATERIAL RESPONSE SEALING ELEMENT
SURFACE TREATMENT CADMIUM CASE AND CHROMATE OR ZINC
AND CHROMATE
SURFACE TREATMENT DOCUMENT QQ-P-416,TY 2,CL 3 FED SPEC 1ST
AND CLASSIFICATION TREATMENT RESPONSE CASE OR
QQ-Z-325,TY 2,CL 3 FED SPEC 2ND
TREATMENT RESPONSE
