$33.25

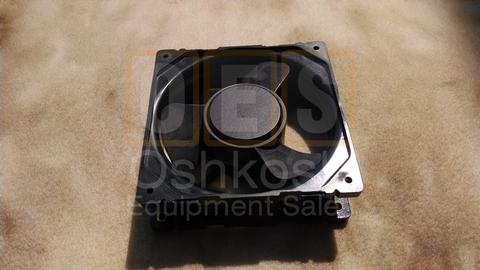

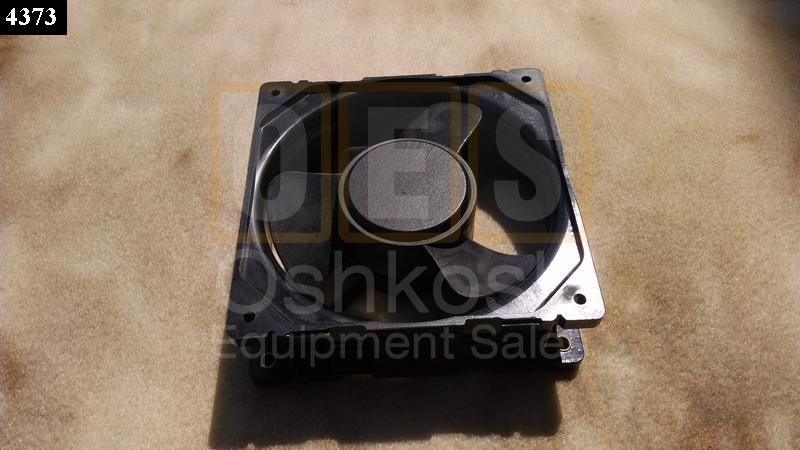

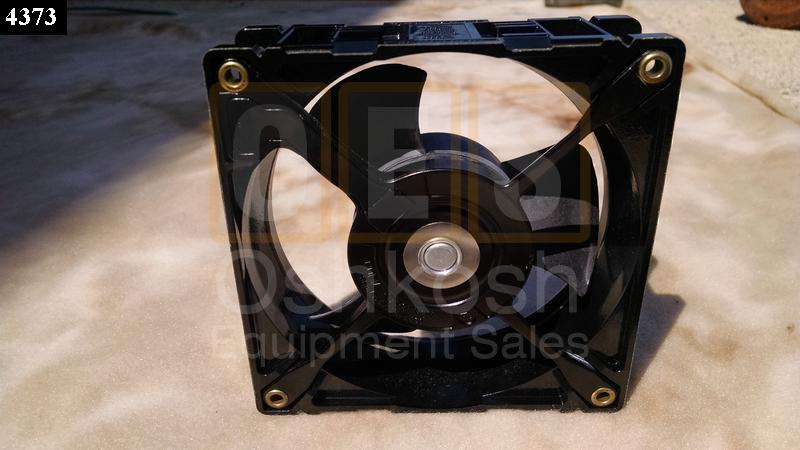

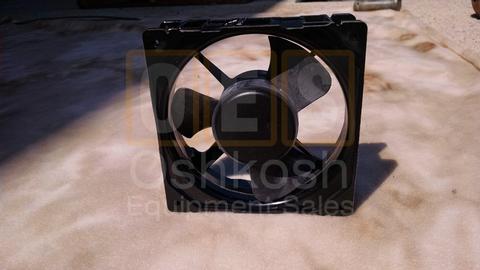

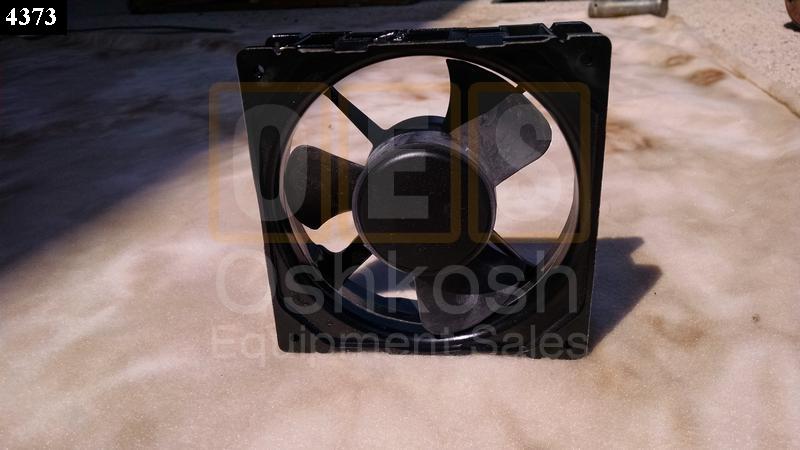

FAN,TUBEAXIAL
- Military Description:
FAN,TUBEAXIAL
- National Stock Number (NSN): 4140-01-120-9243, 4140011209243
- Federal Supply Class (FSC): 4140 (Fans, Air Circulators, Blower Equipment)
- National Item Identification Number (NIIN): 011209243
- Federal Stock Number (FSN): 4140-120-9243, 41401209243
- Alternate Numbers: 676004
- CAGE numbers: 7Z016
SPEED ADJUSTMENTS SINGLE SPEED
ABRY LENGTH 1.500 INCHES NOMINAL
ADNK FLOW DIRECTION INWARD
AEHY AMBIENT TEMP AT FULL RATED -18.0 DEG CELSIUS AND 70.0 DEG
POWER CELSIUS
AEQC OPERATING SPEED AT RATED 3200.0
CAPACITY IN RPM
AGBD ELECTRICAL CONNECTION TYPE TERMINAL
AJLY STATIC PRESSURE AT 0.0 INCHES OF WATER
SPECIFIED AIR FLOW RATE
AKCV DRIVE TYPE DIRECT
AKDJ PRIME MOVER TYPE ELECTRIC MOTOR
AKNA INCLOSURE TYPE FULLY INCLOSED
AXHR MOUNTING FACILITY TYPE AND 2 FLANGE AND 8 UNTHREADED HOLE
QUANTITY
AYSY ROTATION DIRECTION FOR COUNTERCLOCKWISE
WHICH DESIGNED
CQKX AIR FLOW RATE 105.0 CUBIC FEET PER MINUTE
NOMINAL
CSBH VOLTAGE IN VOLTS AND 115.0 AC
CURRENT TYPE
CSYL PRIME MOVER POWER RATING 0.019 HORSEPOWER
CWLX HOUSING INSIDE DIAMETER 4.500 INCHES NOMINAL
CWLY PRIME MOVER DRIVE SHAFT SLEEVE
BEARING TYPE
FAAZ PHASE SINGLE
FREQ FREQUENCY IN HERTZ 60.0
MATT MATERIAL PLASTIC BLADE
MATT MATERIAL PLASTIC PHENOLIC HOUSING
PRPY PROPRIETARY CHARACTERISTICS ALL PACS
STYL STYLE DESIGNATOR 31 FIXED
