$8.56

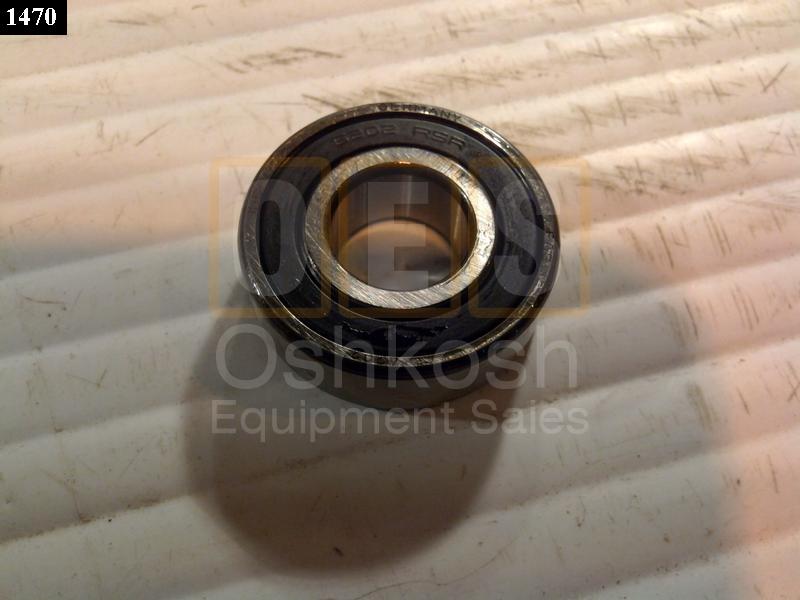

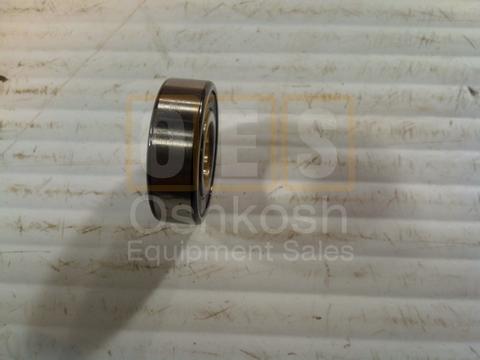

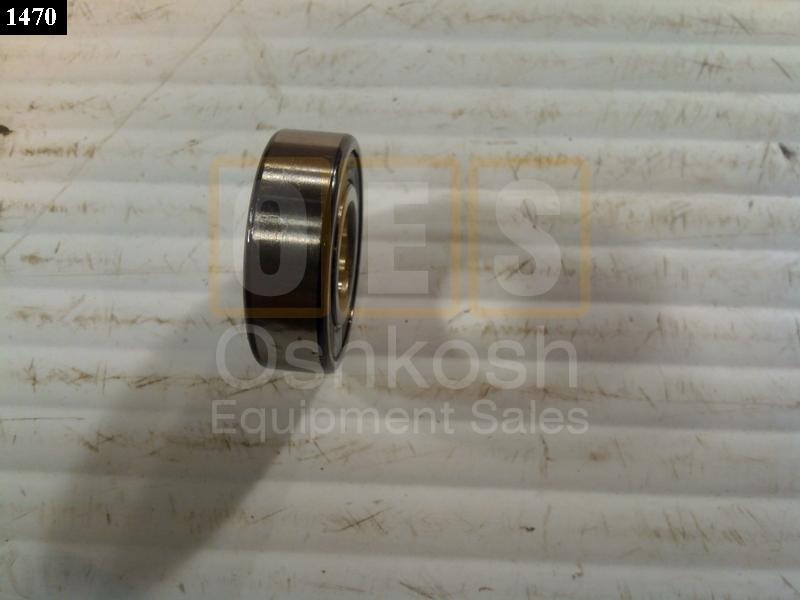

Sealed Ball Bearing
- Military Part Number: 6202RSR
- Military Description:
BEARING,BALL,ANNULAR

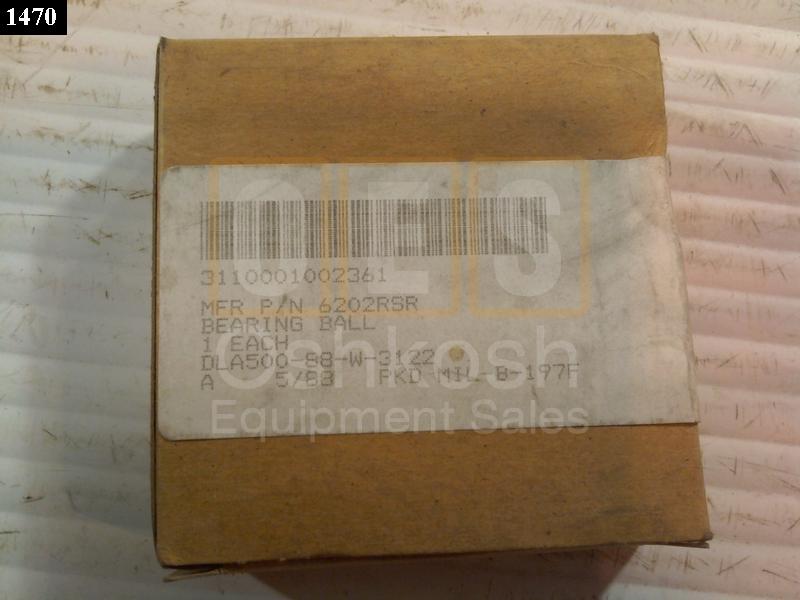

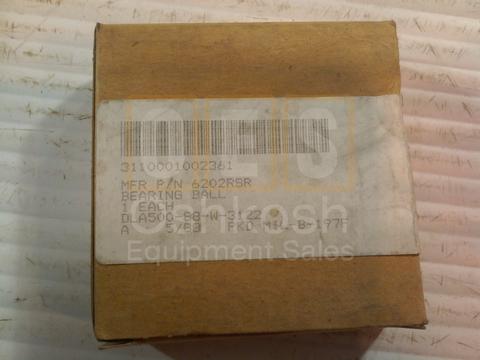

- National Stock Number (NSN): 3110-00-100-2361, 3110001002361
- Federal Supply Class (FSC): 3110 (Bearings, Antifriction Unmounted)
- National Item Identification Number (NIIN): 001002361
- Federal Stock Number (FSN): 3110-100-2361, 31101002361
BEARING,BALL,ANNULAR
OVERALL WIDTH 11.0 MILLIMETERS NOMINAL
BORE DIAMETER 15.00 MILLIMETERS NOMINAL
OVERALL OUTSIDE DIAMETER 35.00 MILLIMETERS NOMINAL
SURFACE FINISH GROUND
RETAINER FABRICATION METHOD PRESSED
SEAL QUANTITY 1
BEARING SEAL TYPE CONTACT
LOAD DIRECTION RADIAL
BORE SHAPE STRAIGHT
INTERNAL FIT-UP DESIGNATION STANDARD
STANDARD TOLERANCE ABEC NO.1
DESIGNATION
MATERIAL STEEL BALL
MATERIAL STEEL INNER RING
MATERIAL STEEL OUTER RING
MATERIAL STEEL RETAINER
MATERIAL RUBBER SYNTHETIC SEAL
STYLE DESIGNATOR 10A NON-LOADING GROOVE,
NON-SEPARABLE
