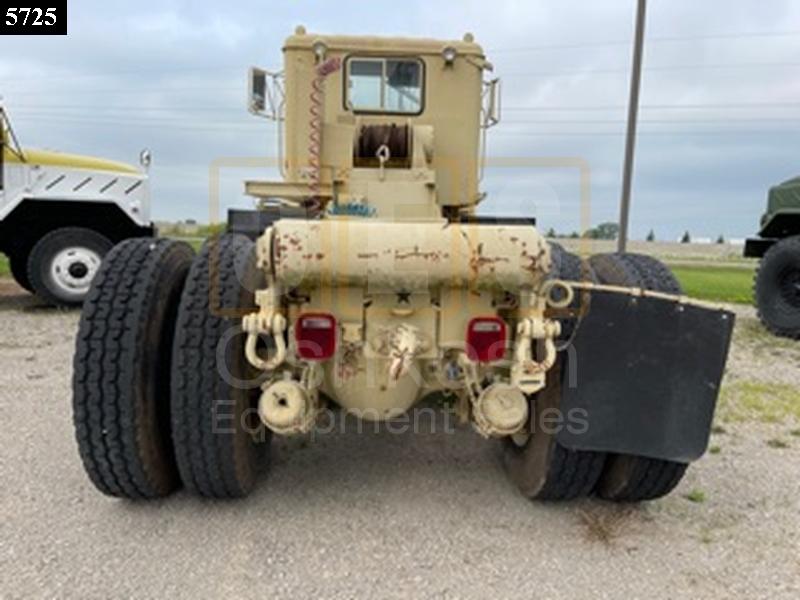

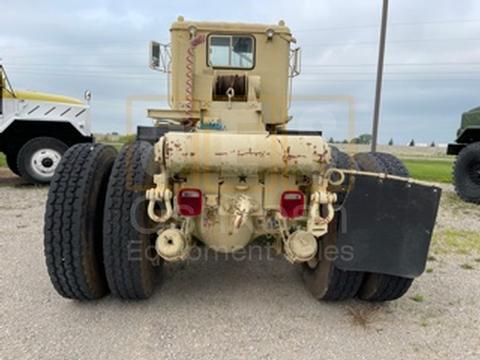

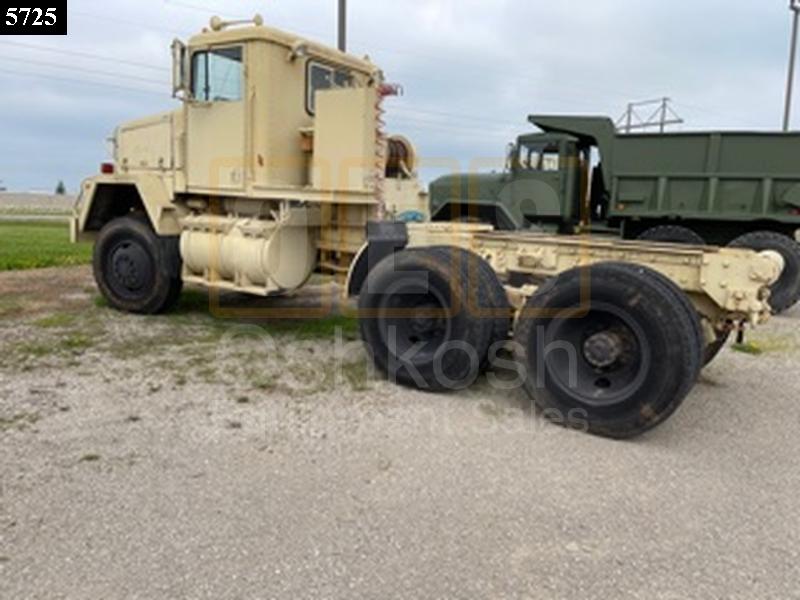

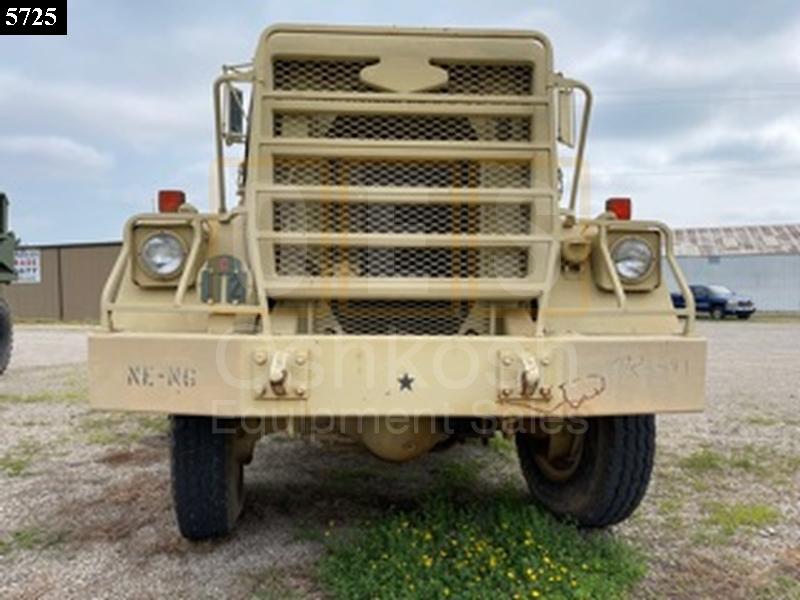

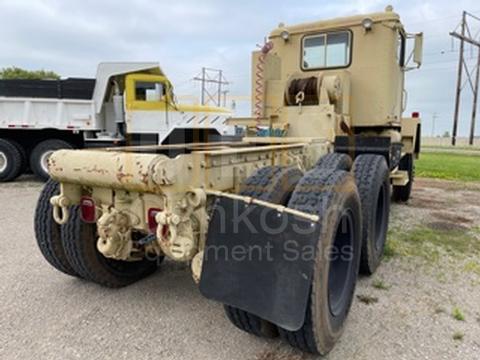

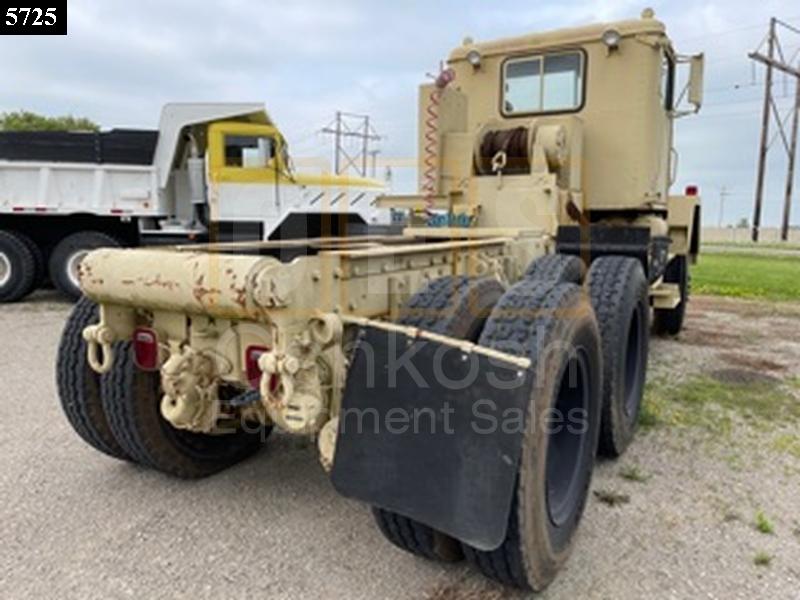

M916 6X6 Tractor (TR-500-77)

Contact for Price and Availability
M916 6X6 Tractor (TR-500-77)

Please contact us to order this item.

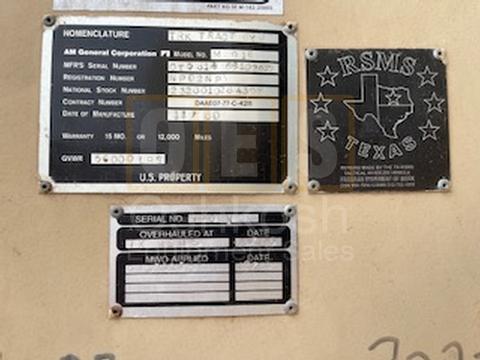

  • Military Part Number: M916
  • National Stock Number (NSN): 2320-01-028-4396, 2320010284396
  • Federal Supply Class (FSC): 2320 (Trucks and Truck Tractors, Wheeled)
  • National Item Identification Number (NIIN): 010284396
  • Federal Stock Number (FSN): 2320-028-4396, 23200284396

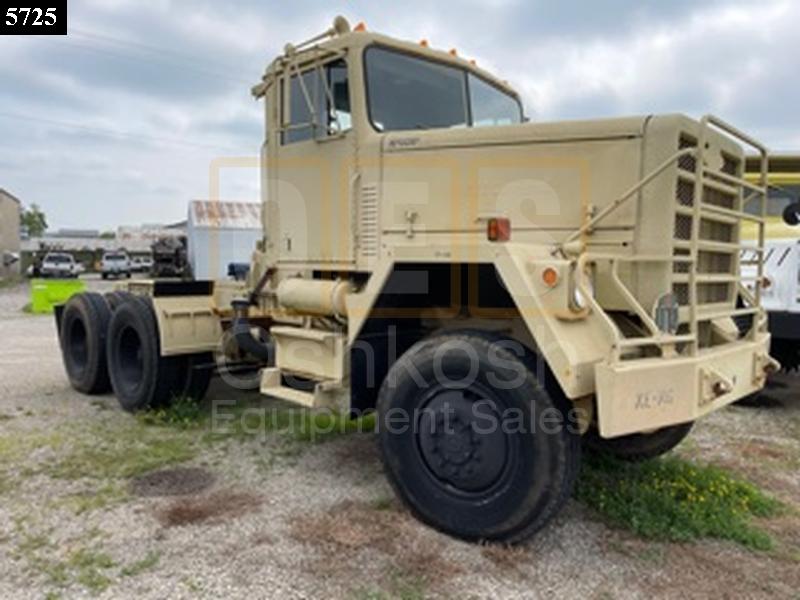

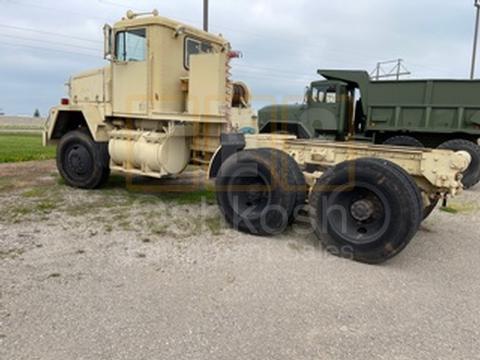

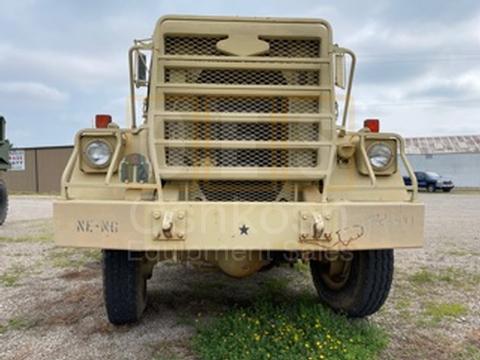

The Truck, Tractor: 20-Ton, Light Equipment, 6x6, 56,000 GVW M916 are used primarily with to tow compatible semitrailers -- low bed type M172A1, 25-ton payload and M870, 40-ton payload -- to transport engineer construction equipment in the local, line haul and maintenance evacuation missions on primary, secondary and off-road conditions. They have an on-board winch capable of pulling engineer construction equipment onto the M870 semitrailer. The maximum GCVW, when towing the M870 40-ton semitrailer, is 130,000 pounds. Freightliner delivered more than 1,070 of these vehicles to the Army from 1990 to the 2000s.  This vehicle is equipped with a 400HP Cummins Engine and a Caterpillar 16-Speed Semi Automatic D7155 Overdrive Air Contriol Power Shift Transmission, Oshkosh Model F-U29 (18000) Series Transfer Case and Rockwell Axles.





Specifications
  • Year: 1981

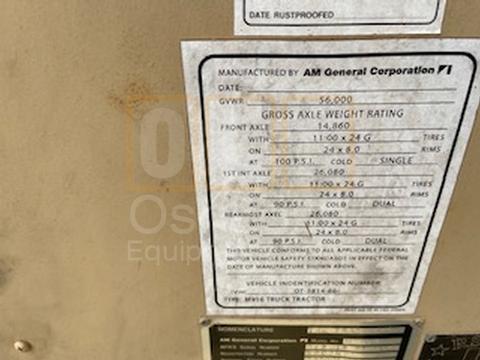

  • Make: AM General
  • Model: M916
  • Engine: Cummins 400
  • Fuel Type: Diesel

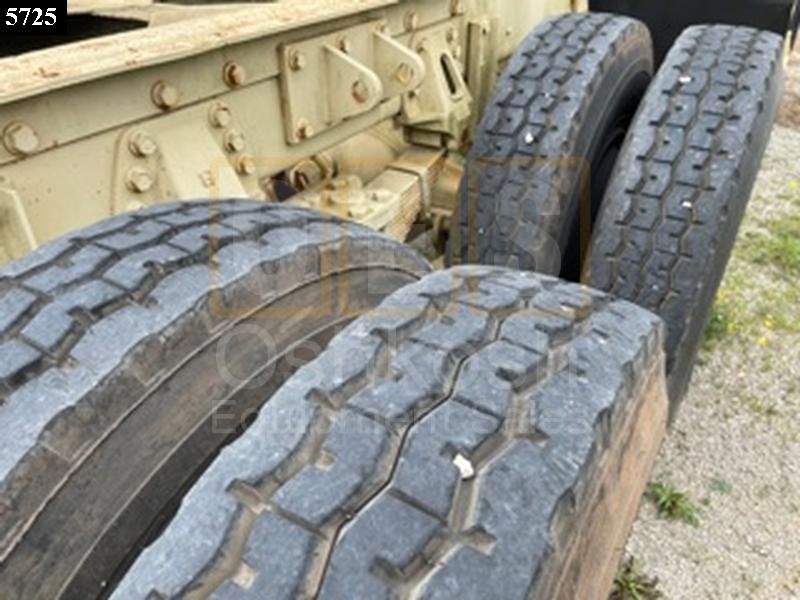

  • Tire Condition: Excellent

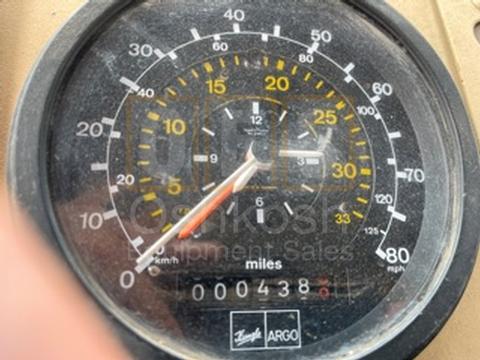

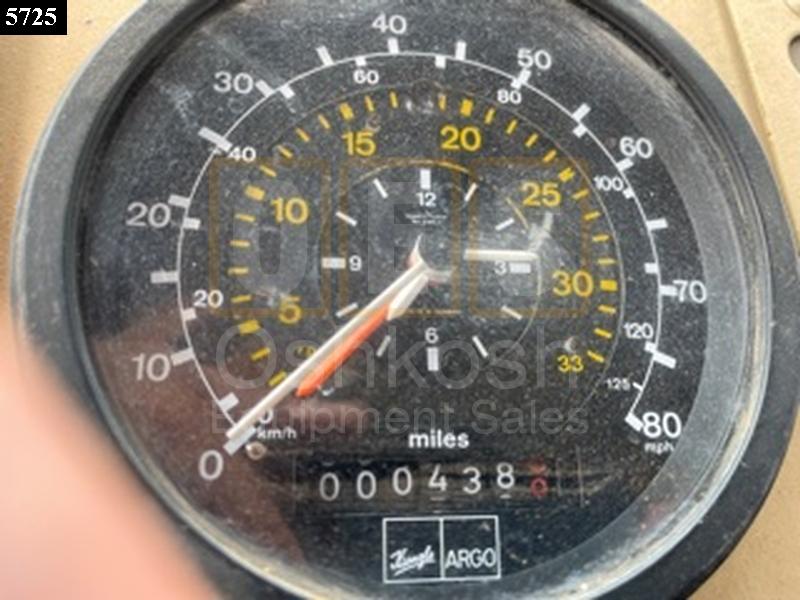

  • Mileage: 432

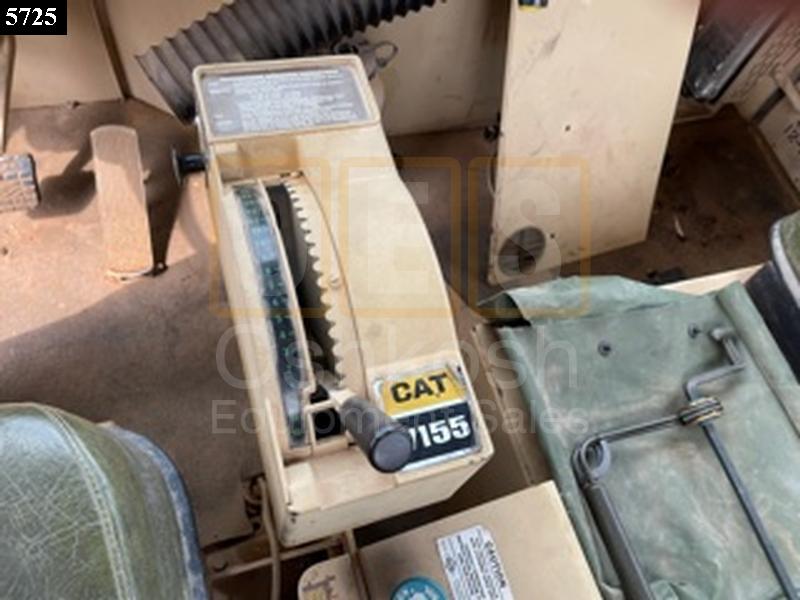

  • Transmission: CAT 7155
  • Transfer Case: Oshkosh
  • Extras/Options: DP 45,000# Winch
