$12.95

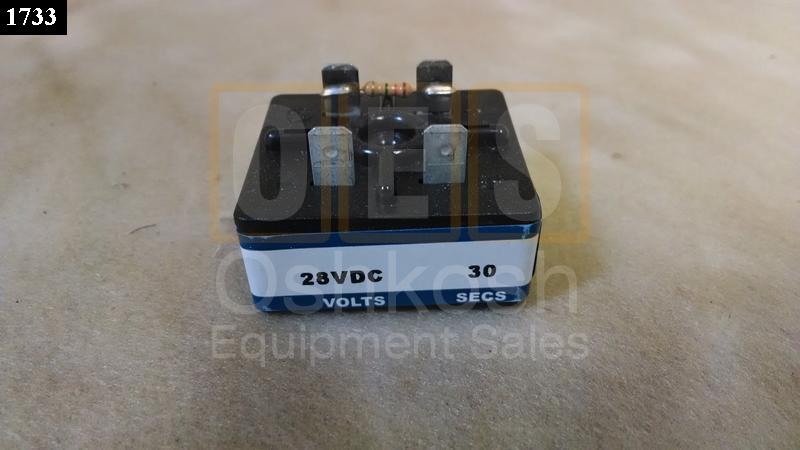

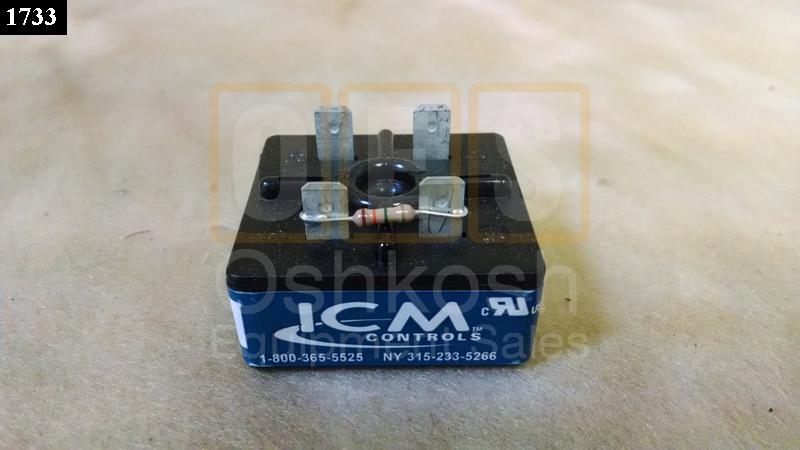

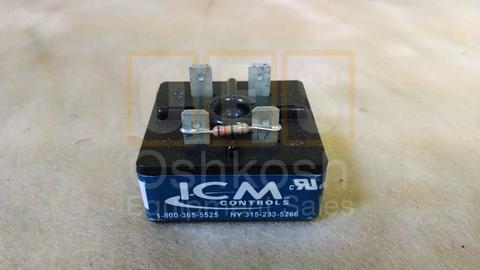

30 Second Time Delay 24V Solid State Relay
- Military Part Number: MMS28D1Y30A
- Military Description:
RELAY,SOLID STATE
- National Stock Number (NSN): 5945-01-166-2972, 5945011662972
- Federal Supply Class (FSC): 5945 (Relays and Solenoids)
- National Item Identification Number (NIIN): 011662972
- Federal Stock Number (FSN): 5945-166-2972, 59451662972
- Alternate Numbers: 13225E8024-1
Time Delay Relay Assembly. Used on Some Military Air Conditioning units (A/C). Other universal applications. 24 Volt
ITEM NAME: RELAY,SOLID STATE
SPECIAL FEATURES: HERMETICALLY SEALED; 1.810 IN.
MAX LG; 1.660 IN. MAX W; 1.340
IN. MAX H; ONE 0.350 IN. HOLE
0.125 IN. DP; INPUT 28.0 VDC;
OUTPUT 20.0 MA; TIME DELAY 30.0
SEC; 4 MALE QUICK DISCONNECT
SOLDER TERMINALS
