Contact for Price and Availability
Windshield Wiper Actuator Connecting Arm and Pivot (RH)
- Military Part Number: 89142-121ZF
- Military Description:
PIVOT ASSEMBLY,WIND AND CONNECTING ARM RH
- National Stock Number (NSN): 2540-01-095-9611, 2540010959611
- Federal Supply Class (FSC): 2540 (Vehicular Furniture and Accessories-10)
- National Item Identification Number (NIIN): 010959611
- Federal Stock Number (FSN): 2540-095-9611, 25400959611

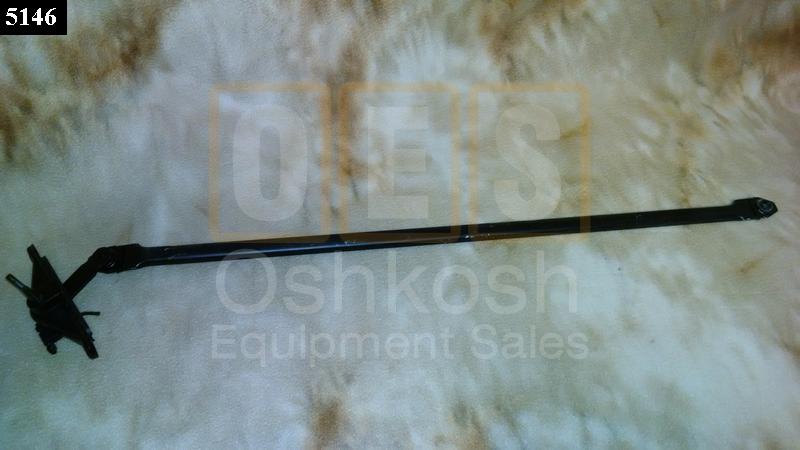

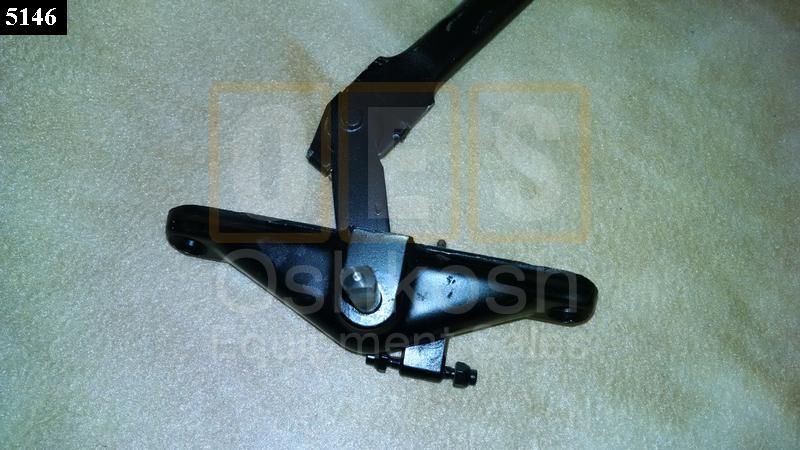

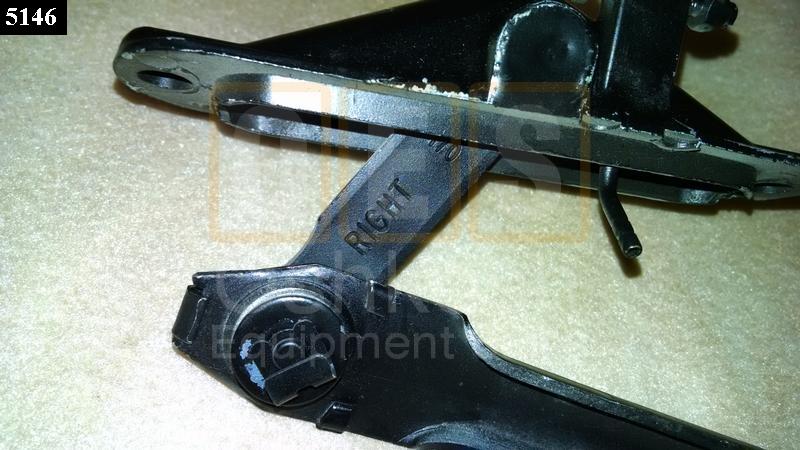

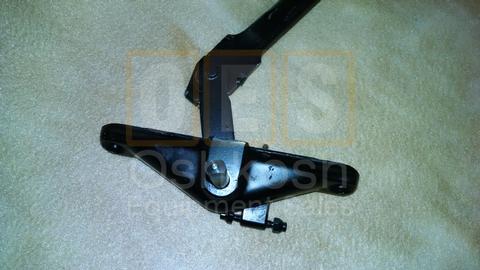

Right Hand Windshield Wiper Actuator Connecting Arm and Pivot Assembly. Used on M915A1, M915, M916, M917, M918 and M920 Military Vehicles.
Includes Part Numbers
88171-4JD ...NOZZLE,WINDSHIELD 2
86022-4JD ...ADAPTER,STRAIGHT
86446-2BC ...PIVOT,BODY 2
95000-37J ...WASHER,FLAT 2
78647-1J ...CLIP,SPRING TENSION 2
89339-345...CONNECTING LINK,RIG
This item fits the following series and models of equipment:
M915 Series (14-20 Ton)
M915 , M916 , M917 , M918 , M919 , M920
M915A1 (14 Ton)
M915A1
