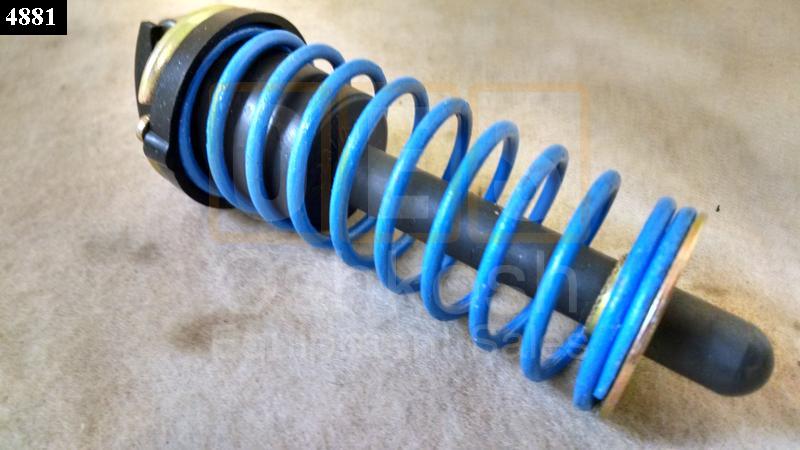

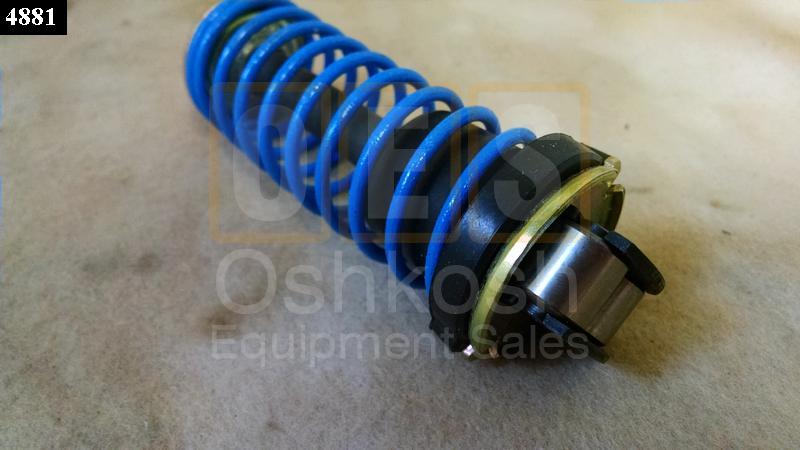

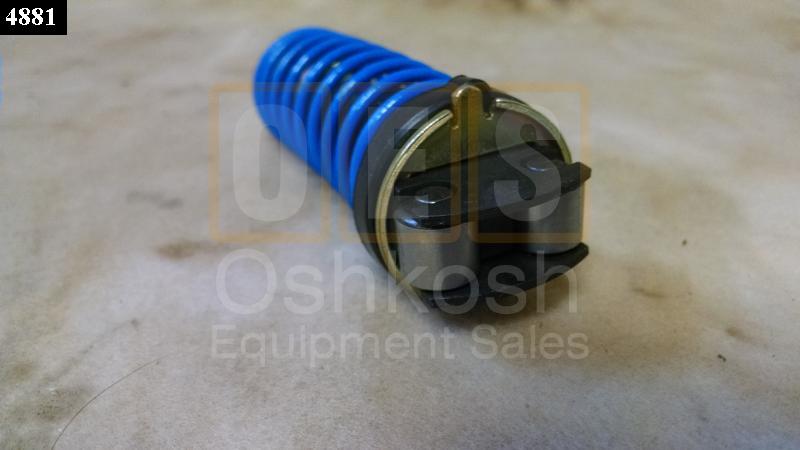

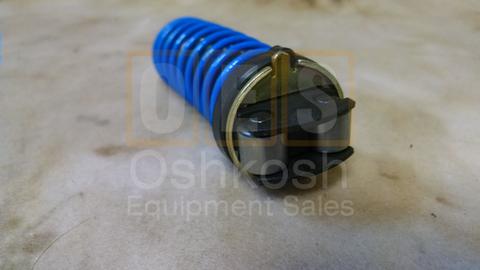

Spider Brake Spring Wedge Plunger Assembly

$88.60
Spider Brake Spring Wedge Plunger Assembly

  • Military Part Number: A-2747-H-112
  • Military Description:

    WEDGE ASSEMBLY

  • National Stock Number (NSN): 2530-00-117-9144, 2530001179144
  • Federal Supply Class (FSC): 2530 (Vehicular Brake, Steering, Axle, Wheel and Track Components-10)
  • National Item Identification Number (NIIN): 001179144
  • Federal Stock Number (FSN): 2530-117-9144, 25301179144
  • Alternate Numbers: 472TA508, A2747H112, L-773
  • CAGE numbers: 45152,60528,7S526

Spring Wedge Assembly for Spider Air Brake System on M939 Series 5 Ton Military Vehicles, M911 Oshkosh Truck C-HET and Some Military Trailers

This item fits the following series and models of equipment:

M911 (22.5-Ton)

M911

M939 Series (5-Ton)

M923 , M923A1 , M923A2 , M925 , M925A1 , M925A2 , M927A1 , M927A2 , M928 , M928A1 , M928A2 , M929 , M929A1 , M929A2 , M930 , M930A1 , M930A2 , M931 , M931A1 , M931A2 , M932 , M932A1 , M932A2 , M934 , M934A1 , M934A2 , M936 , M936A1 , M936A2

Part Diagram(s) for all related series equipment

Part Diagram(s)
