Contact for Price and Availability

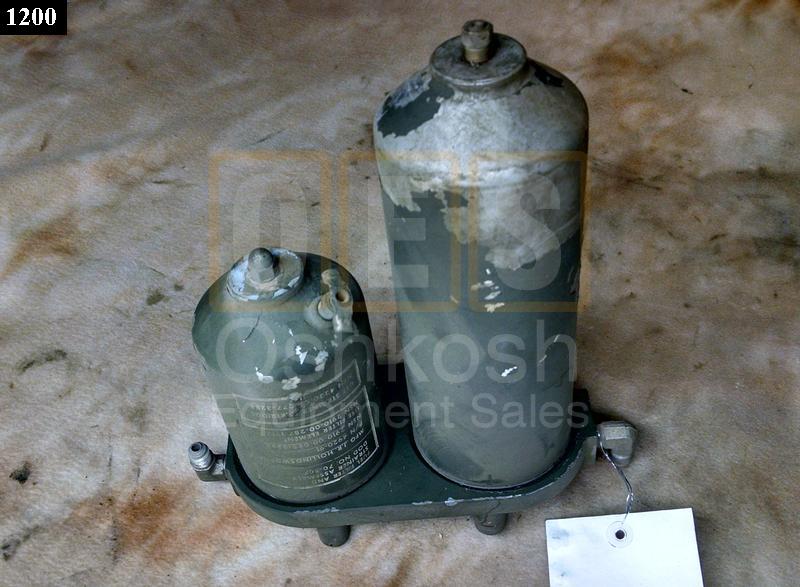

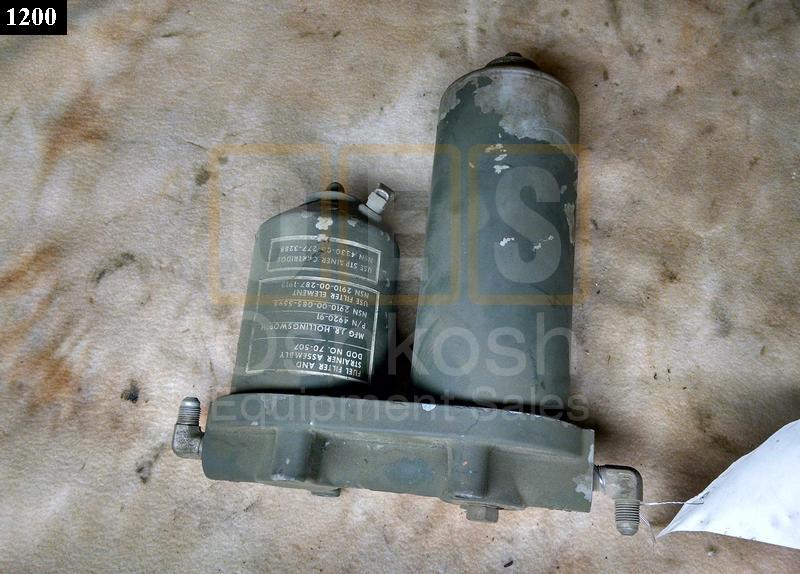

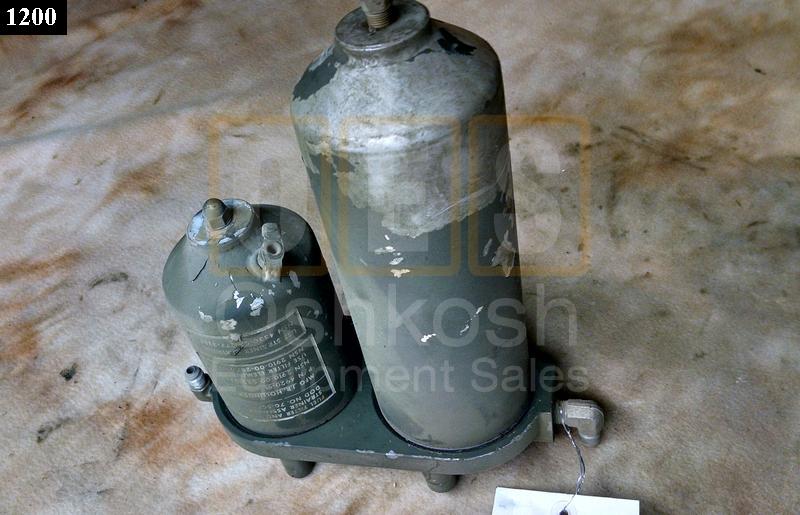

Generator Fuel Filter And Strainer Assembly
Item currently out of stock.
- Military Part Number: 70-507
- Military Description:
FILTER AND STRAINER ASSY,FUEL
- National Stock Number (NSN): 2910-00-085-5598, 2910000855598
- Federal Supply Class (FSC): 2910 (Engine Fuel System Components, Non-Aircraft-10)
- National Item Identification Number (NIIN): 000855598
- Federal Stock Number (FSN): 2910-085-5598, 29100855598
- Alternate Numbers: 240903, 30554-70-507
Primary Fuel Filter and Strainer Assembly for 15kW, 30kW, 60kW, 100kW, 200kW and 500kW MEP Military Diesel Generators.
This item fits the following series and models of equipment:
100kW
MEP007A , MEP106A , MEP116A
100kW B
MEP007B
15kW
MEP004A , MEP004A KZOOO1 thru Z01226 , MEP103A , MEP113A , MEP113A Serial Numbers RZ60001 and subs
200kW
MEP009A , MEP108A
200kW B
MEP009B
30kW
MEP005A , MEP005A Serial Numbers KZ00001 thru KZ02752 , MEP104A , MEP104A Serial Numbers KZ00001 thru KZ02752 , MEP114A , MEP114A Serial Numbers RZ70001 and sub.
500kW
MEP029A Engine SN above 10605201 Model VTA 1710-G , MEP029A Serial No. FZ0020 and FZ09100 thru FZ09150 , MEP029A Serial Numbers below 10605201 , MEP029A Serial Numbers FZ0001 thru FZ0019 , MEP029A Serial Numbers FZ0001 thru FZ0064 , MEP029B Engine Model VTA 28-G-1 , MEP029B Serial Numbers FZ09100 thru FZ09150
60kW
MEP006A , MEP105A , MEP115A
