Gaskets

Gaskets, Flange Gaskets, and Gasket Sets for a wide variety of Military Trucks. M-Series 2.5-Ton, 5-Ton, 10-Ton, 14-Ton, 20-Ton, 22.5-Ton Trucks and many others.

Gasket

Gasket pn 7520958 ... Application Unknown

$5.65
5330-00-752-0958

Oil Dipstick Seal (Multi-Fuel)

Oil Dipstick Seal Used on 2.5 Ton and 5 Ton Military Trucks with Multi-fuel Engines

$2.24
5330-00-737-6332

Hydraulic Reservoir Assembly Gasket

Hydraulic Reservoir Assembly Gasket for M977 HEMTT 10 Ton 8 x 8 Military Truck

$32.56
5330-01-152-7216
Out of Stock

Filter Kit For M939 and M939A1 Series 5 Ton Military Trucks

Complete Service Filter Kit for M939 and M939A1 Series 5 Ton Military Vehicles. Does Not Fit M939A2 Series Trucks. See Related Items below for these Vehicles...

Includes:

1) Air Filter

1) Oil Filter

1) Fuel Filter/Water Separator

1) Remote Transmission Filter

1) Oil Filter Sealing O-Ring

1) Oil Filter Canister Copper Sealing Washer

Does not include the Hydraulic Filter that is used on Dump Trucks or trucks with front winch. See related items for this part.

$312.94

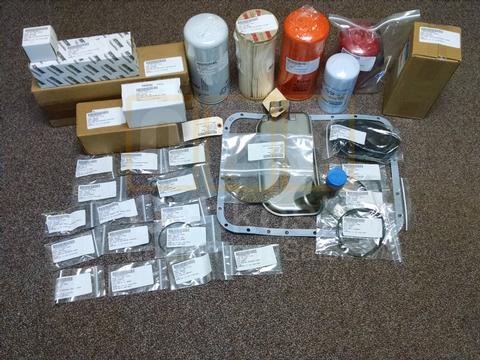

6000 Mile Service Kit M1074 PLS

6000 Mile Service / Maintenance Kit for Oshkosh M1074 and M1075 PLS Truck. (Palletized Loading System)

Includes:
FILTER ELEMENT,FLUID    4330-01-132-4842

HD223|HF6106|HF6243|LFH 4223|P264|P271|P3613|P3613|016988V|1623

FILTER ELEMENT,FLUID    4330-01-232-8305
D1301489|P16-7154|1300766|1314130|1326147|1457440|929293

FILTER ELEMENT,FLUID   2940-01-314-1345
23518524

PARTS KIT,DEHYDRATOR    4440-01-337-7324
A-419784|DQ-6030|DQ-6030|RN-60-A

STRAINER,SUCTION    4730-01-113-1458
L104990|L104990|SS-2-100|196955A1|50-2.0-100|50-2-0-100

SCREW,CAP,SOCKET HEAD    5305-01-205-0041
12324581|2DE292|96-212

WASHER,LOCK    5310-00-209-1218
STD251|1210-00|2239H|2239HX|56-941-2

WASHER,LOCK    5310-01-068-8446
1263-3304-0|354AX|93613642

NUT,SELF-LOCKING,CLINCH    5310-01-346-9445
1600460

WASHER,FLAT    5310-01-389-2364
SA75503675|V75503675|2GK618

NUT,PLAIN,EXTENDED WASHER,HEXAGO    5310-01-447-4251
2-X-5731|2GL659

GASKET    5330-00-107-3925
14079550|14090908|164030|2AX549|29507909|3921989

O-RING    5331-00-172-7223
13-0617-44|2-238N674-70|938284631U01

GASKET    5330-01-046-1990
1007 ITEM 1|11007|11007 ITEM 1|11007B|1113|2AT570

GASKET    5330-01-058-7118
92-158|92-158|9688430306

RETAINER,PACKING    5330-01-065-5959
AA0946 7974|077391 2238|8-238N300-9|9HE628

PACKING,PREFORMED    5330-01-147-6003
11350|261061011

O-RING    5331-01-198-8439
019350600|2HL542|22617-06|22617-6|7-755-906002

GASKET    5330-01-234-2618
D1301489 ITEM 4|1199479|2CP2

GASKET    5330-01-234-7625
D1301489 ITEM 2|1199478|2CP565

O-RING    5331-01-244-2273
019350800|22617-8|230515 064400

GASKET    5330-01-328-7635
000760T|23017225

O-RING    5331-01-350-6007
SA75500858|SA75500858|V75500858

GASKET    5330-01-358-5561
1958330

GASKET    5330-01-358-8219
C1305020|1198559|2124D1315749 ITEM 16

PARTS KIT,SEAL REPLACEMENT,MECH 5330-01-377-2460
RN-60-V

GASKET    5330-01-406-8221
FB-7|3HS373

$499.00
2590-01-539-6378

Axle Differential Gasket

Differential Gasket for Front and Rear Axles on M809 Series Military Trucks.

$22.56
5330-00-734-6814
Out of Stock

Filter Kit for M809 Series 5 Ton Trucks

Complete Service Filter Kit for M809 Series 5 Ton Military Vehicles.

Includes:

1) Air Filter

1) Oil Filter

1) Fuel Filter/Water Separator

1) Oil Filter Sealing O-Ring

1) Oil Filter Canister Copper Sealing Washer

$179.65

Oil Pump Flange Gasket

Flange Gasket for Oil Pan on M809, M939, and M939A1 Series Military Trucks with NHC-250 Cummins. Also fits M915A1 Trucks with NTC-400 Cummins.

$4.65
5330-00-143-8376
Out of Stock

Fuel Pump Mounting Gasket

Gear Fuel Pump Mounting Gasket for M809 and M939/M939A1 Series Military Trucks with NHC-250 Cummins Engine. Also fits 500kW and 750kW Military Generators.

Contact for Price and Availability
5330-01-136-8569

Fuel Sending Unit Gasket

Fuel Tank Sending Unit Mounting Gasket. Used on All 2 1/2 and 5 Ton Military Trucks and HMMWV (Humvee) along with some Military Generators MAY FIT OTHER VEHICLES AND MACHINERY

$8.29
5330-00-753-9072

Wrecker Hydraulic Winch Hoist Motor Mounting Gasket

Wrecker Hydraulic Winch Hoist Motor Mounting Gasket. M39 / M54, M809 and M939 Series 5-Ton Military Wrecker / Recovery Vehicles

$16.42
5330-00-182-3489

Air Shift Control Assembly Mounting Gasket (7155 Caterpillar Transmission)

Air Shift Control Assembly Mounting Gasket (7155 Caterpillar Transmission) Used on M915 Series AM General Military Trucks with Caterpillar 7155 Powershift Transmission including Models M915, M916, M917, M918, M919 and M920

$85.43
5330-01-079-4747

Intake Manifold Gasket

Intake Manifold Gasket. Fits Cummins NHC250 Diesel engine. Used on M809, M939 and M939A1 Military Trucks

$8.95
5330-01-086-3523

Head Gasket NHC 250 Cummins

Head Gasket NHC250 Cummins. Fits M809, M939 and M939A1 Military Trucks

$58.56
5330-01-080-5021

Rocker Box Base Gasket

Rocker Box Base Gasket. Fits M809, M939 and M939A1 Military vehicles with Cummins NHC 250 Diesel Engine

$14.56
5330-00-861-8592

Oil Pan Aerator Gasket

Oil Pan Aerator Gasket. Used on M809 and M939 Series Military Vehicles with Cummins NHC250 Diesel Engine

$3.25
5330-00-143-8371
Out of Stock

Exhaust Gasket 6CTA8.3 Cummins

Exhaust Pipe Gasket to Turbo. Used on M939A2 Military vehicles with 6CTA8.3 Cummins Diesel Engine. Does not fit M939 and M939A1 Vehicles

Contact for Price and Availability
5330-01-361-5600

GASKET, TRANSMISSION PAN

Transmission Pan Gasket for Allison AT545 and MT654 Series.  May fit other models.

$10.95
5330-01-407-1644
Out of Stock

Transmission Pan Gasket (M939 Series 5-Ton Military Trucks with Allison MT654CR)

Transmission Pan Gasket.  Fits Allison AT-540/542/545, MT-643/644/654, VT730/731

Used on M939 Series 5-Ton Vehicles.



Part of Filter Kit #23019201

Contact for Price and Availability
5330-01-120-8090
Out of Stock

Fuel Tank Pick Up Plate Gasket

Fuel Tank Pick Up Plate Cover Gasket. Used on Military Humvee (HMMWV)

$9.42
5330-01-194-0473
