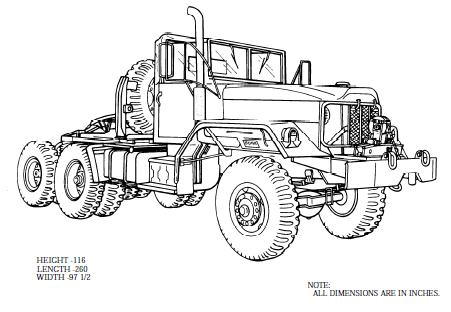

M818 TRACTOR TRUCK 6X6
NSN with winch: 2320-00-050-8978
NSN w/o winch: 2320-00-050-8984
NSN w/o winch: 2320-00-050-8984
TM numbers:
9-2320-260-Series
9-2320-260-Series
Expanded Description:
Horsepower: 225 bhp @ 2,100 rPm
Transmission: Manual; 5 Fwd, 1 Rev
Electrical System: 24 Volt
Tires: 11:00 x 20, 12-ply
VEHICLE DATA
Type Classification & Date: Std A, 1971
Replaces: M52 Series
Life Expectancy: 20 Years
Payload: 15,000 lb
Towed Load Allowance: 37,500 lb
Air Transportability: Phase II, unladen
EQUIPMENT OPTIONS
Kits: Fording, Personnel Heater, Hard Top,
Thermal Barrier, Winterization, Electric
Brake, Slave, Front Lifting, Hot Water Personnel
Heater, Alternator Conversion, Air
Drop, Machine Gun Mounting, Windshield
Washer, Fire Extinguisher, Tachograph,
Seat Belt (Floating), Mud Flap, Low Air
Pressure Warning Light
Brakes: Air over hydraulic
Winch: Yes
Blackout Lights: Yes
Horsepower: 225 bhp @ 2,100 rPm
Transmission: Manual; 5 Fwd, 1 Rev
Electrical System: 24 Volt
Tires: 11:00 x 20, 12-ply
VEHICLE DATA
Type Classification & Date: Std A, 1971
Replaces: M52 Series
Life Expectancy: 20 Years
Payload: 15,000 lb
Towed Load Allowance: 37,500 lb
Air Transportability: Phase II, unladen
EQUIPMENT OPTIONS
Kits: Fording, Personnel Heater, Hard Top,
Thermal Barrier, Winterization, Electric
Brake, Slave, Front Lifting, Hot Water Personnel
Heater, Alternator Conversion, Air
Drop, Machine Gun Mounting, Windshield
Washer, Fire Extinguisher, Tachograph,
Seat Belt (Floating), Mud Flap, Low Air
Pressure Warning Light
Brakes: Air over hydraulic
Winch: Yes
Blackout Lights: Yes
Additional Notes:
