$38.77

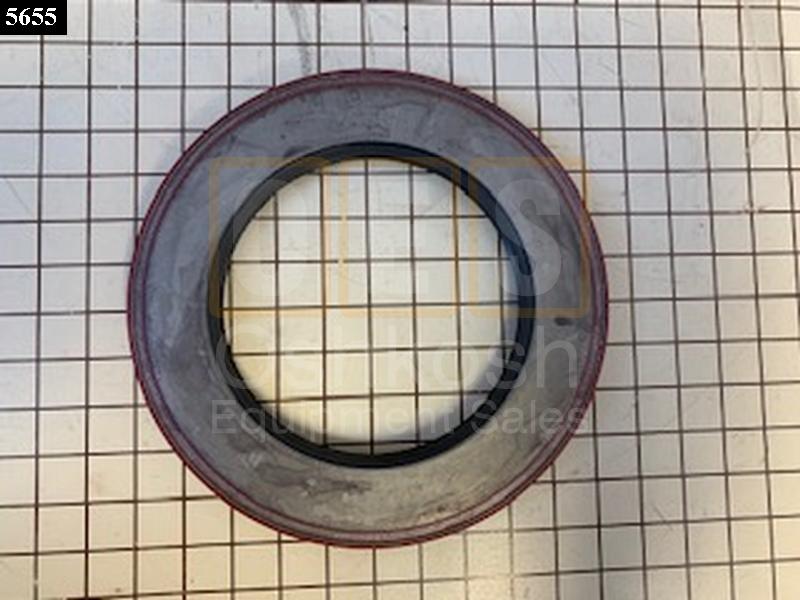

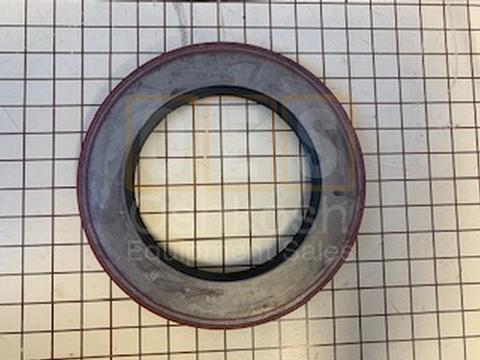

SEAL,PLAIN ENCASED
- Military Part Number: 415023-SSR
- Military Description:
SEAL, OIL
- National Stock Number (NSN): 5330-01-340-9882, 5330013409882
- Federal Supply Class (FSC): 5330 (Packing and Gasket Materials)
- National Item Identification Number (NIIN): 013409882
- Federal Stock Number (FSN): 5330-340-9882, 53303409882
- CAGE numbers: 01212
Housing Bore (In): 4.999 Inch
Housing Bore (mm): 126.97mm
Material: Nitrile
Outside Diameter (mm): 127.1mm
Shaft Size (In): 3.250 Inch
Shaft Width (In): 3.250 Inch
Shaft Width (mm): 82.55mm
Width (In): 0.468 Inch
Width (mm): 11.89mm
This item fits the following series and models of equipment:
M1070 HET 8X8 (23-Ton)
M1070
Part Diagram(s) for all related series equipment
Part Diagram(s)
