$136.40
Air Dryer Major Repair Kit
- Military Part Number: DQ-6030
- Military Description:
PARTS KIT,DEHYDRATE
- National Stock Number (NSN): 4440-01-337-7324, 4440013377324
- Federal Supply Class (FSC): 4440 (Dryers, Dehydrators and Anhydrators)
- National Item Identification Number (NIIN): 013377324
- Federal Stock Number (FSN): 4440-337-7324, 44403377324
- Alternate Numbers: RN-60-A
- CAGE numbers: 06721,3NNX8
Air Dryer Repair Kit for M1070 8x8 Heavy Equipment Transporter HET And M1083 Series FMTV Military Trucks

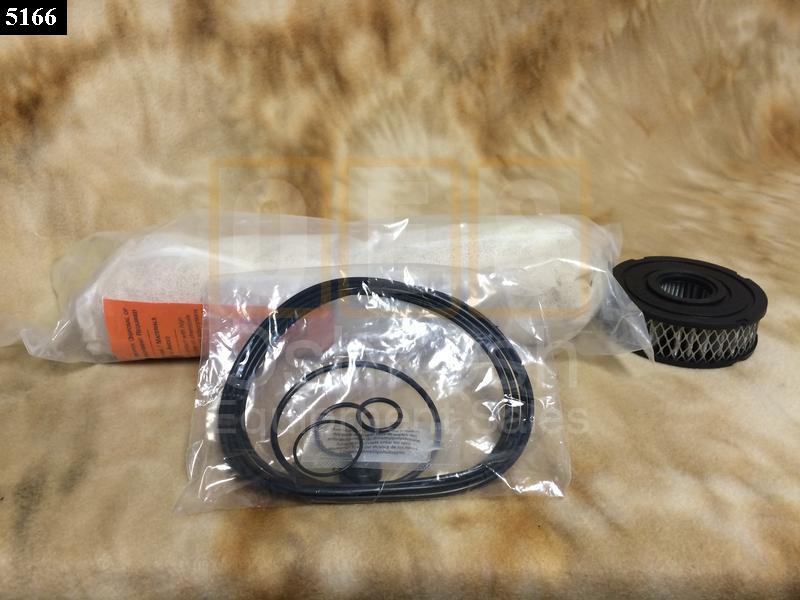

Includes:

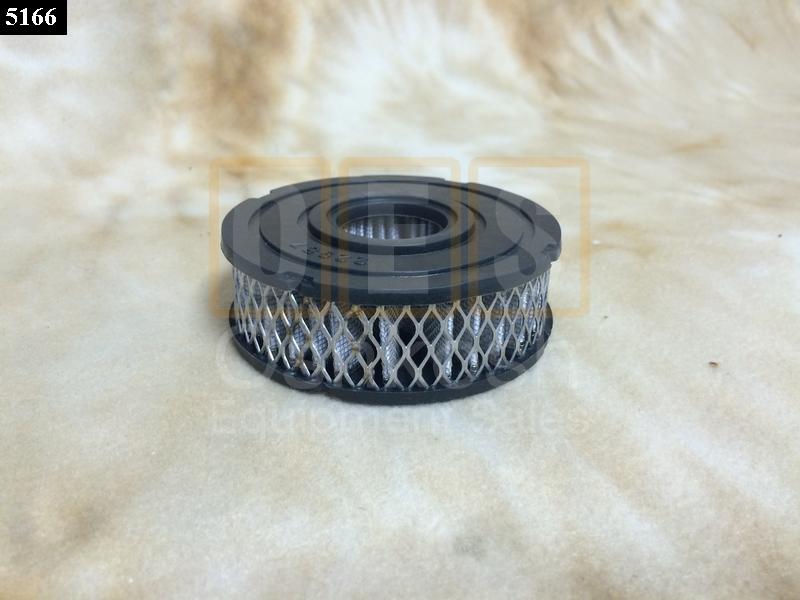

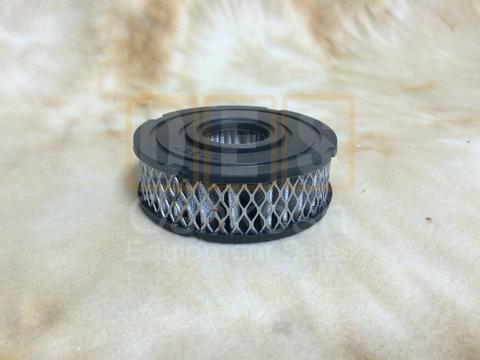

1 Filter (100696-E)

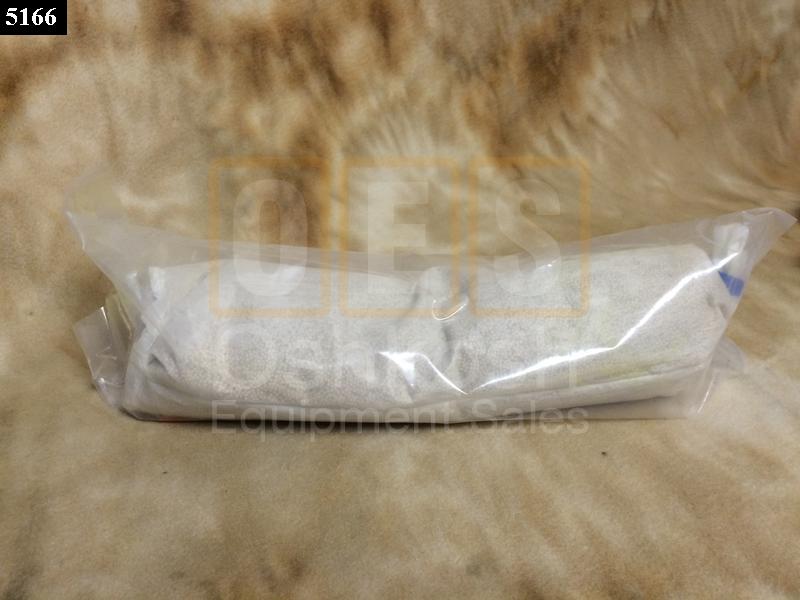

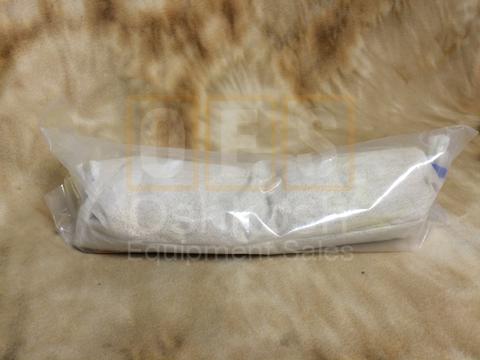

1 Desiccant Bag (102664-A)

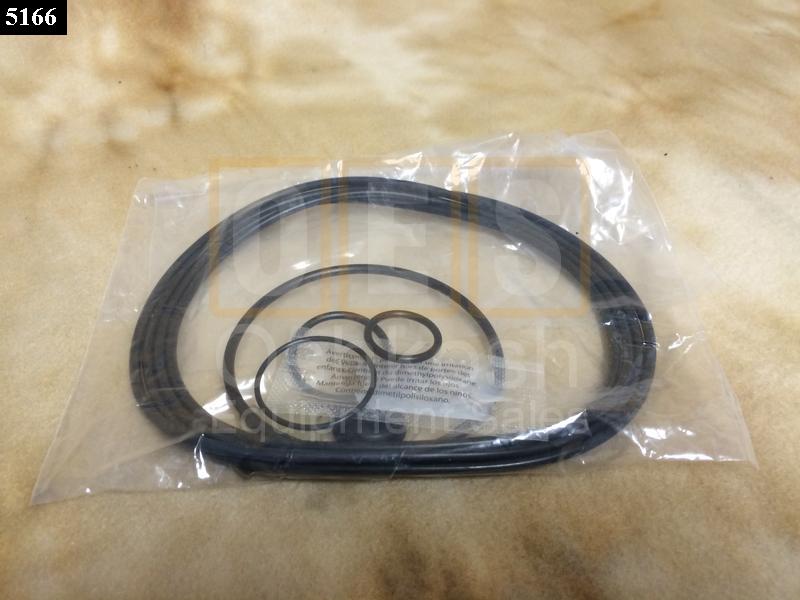

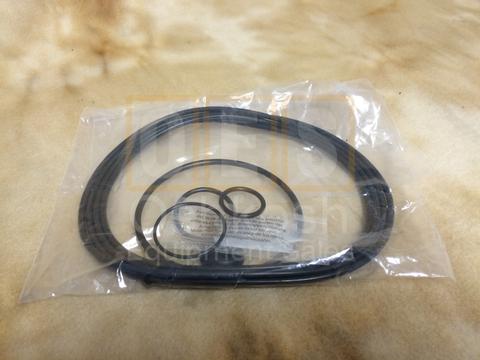

2 O Ring - Cover and Body (N-11728-SZ)
2 O Ring - Cylinder/Body and Cylinder/Canister (N-11728-SV)
1 O Ring Cover/Canister (N-11728-ST)
1 Check Valve Seal (C-11472-J)
1 O Ring Check Valve (N-11728-GP)
1 O Ring Purge Piston (N-11728-GT)
1 O Ring Purge Piston Body (N-11728-BC)
1 Seal - Purge Valve (N-10949-F)
1 Grease - Silicone
This item fits the following series and models of equipment:
M1070 HET 8X8 (23-Ton)
M1070
