$54.50
Transmission Gasket Set
- Military Part Number: 8333711
- Military Description:
GASKET
- National Stock Number (NSN): 5330-00-692-6183, 5330006926183
- Federal Supply Class (FSC): 5330 (Packing and Gasket Materials)
- National Item Identification Number (NIIN): 006926183
- Federal Stock Number (FSN): 5330-692-6183, 53306926183

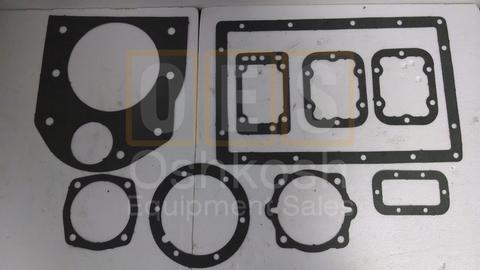

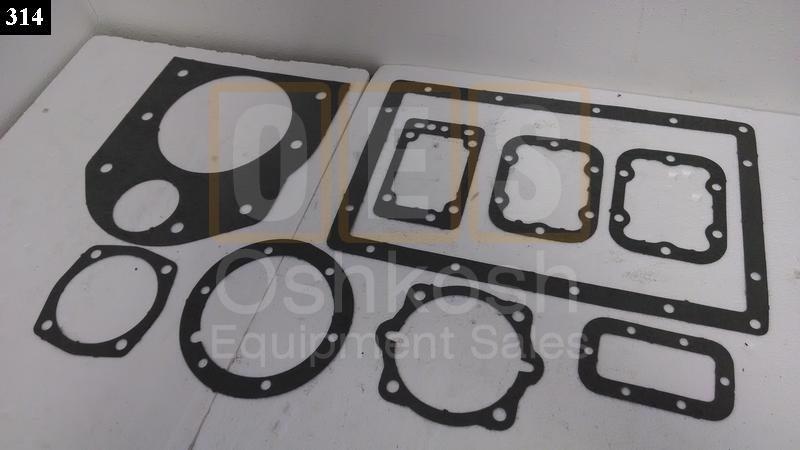

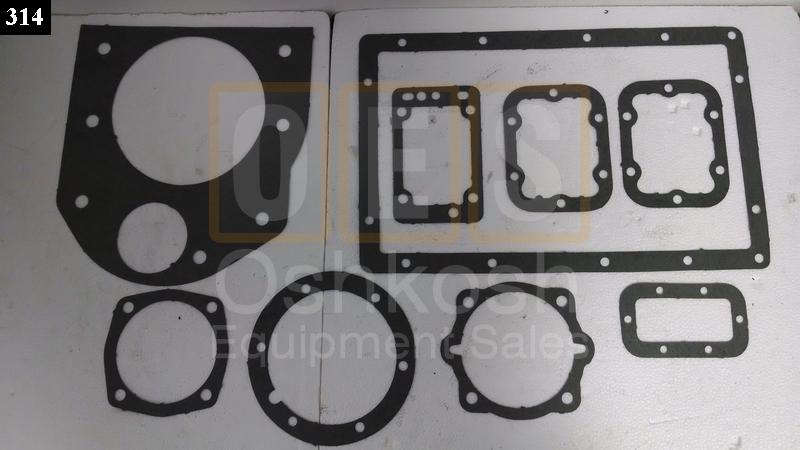

Complete Transmission Gasket Set. Used on M39 and M809 Series 5-Ton Military Trucks with Spicer Manual 5-Speed Transmission
This item fits the following series and models of equipment:
M39 / M54 Series (5-Ton)
M139 , M139A2F , M139C , M139D , M139F , M246 , M246A2 , M291A2 , M291A2C , M291A2D , M328A1 , M40 W/WINCH , M40 WO/WINCH , M41 W/WINCH , M41 WO/WINCH , M51 W/WINCH , M51 WO/WINCH , M51A2 W/WINCH , M51A2 WO/WINCH , M52 W/WINCH , M52 WO/WINCH , M52A1 W/WINCH , M52A1 WO/WINCH , M52A2 W/WINCH , M52A2 WO/WINCH , M54 W/WINCH , M54 WO/WINCH , M543 , M543A1 , M543A2 , M54A1 W/WINCH , M54A1 WO/WINCH , M54A2 W/WINCH , M54A2 WO/WINCH , M54A2C W/WINCH , M54A2C WO/WINCH , M55 W/WINCH , M55 WO/WINCH , M55A2 W/WINCH , M55A2 WO/WINCH , M62 , M748A2
M809 Series (5-Ton)
M813 W/WINCH , M813 WO/WINCH , M813A1 W/WINCH , M813A1 WO/WINCH , M814 W/WINCH , M814 WO/WINCH , M815 , M816 , M817 W/WINCH , M817 WO/WINCH , M818 W/WINCH , M818 WO/WINCH , M819 , M820 , M820A1 , M820A2 , M821
This product is an assembly which contains the following parts
Kit
- PTO Mounting Gasket (.020) (2)
- Transmission Gear Shift Cover Gasket (1)
- Transmission Inspection Cover Gasket (1)
- Transmission Input Flange Gasket (1)
- Transmission Output Flange Gasket (1)
- Transmission Gear Shift Housing Gasket (1)
- Transmission Counter shaft Cover Gasket (1)
- Transmission Bellhousing Gasket (1)
