$1,020.00

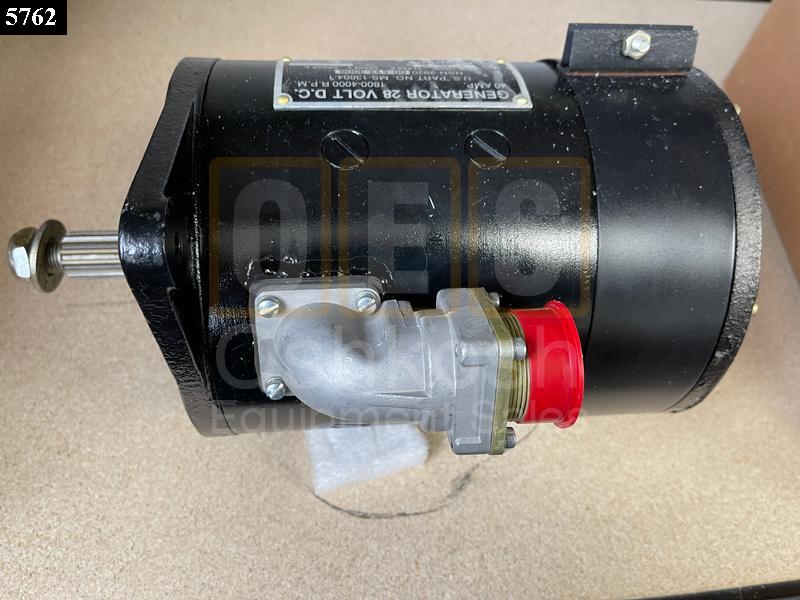

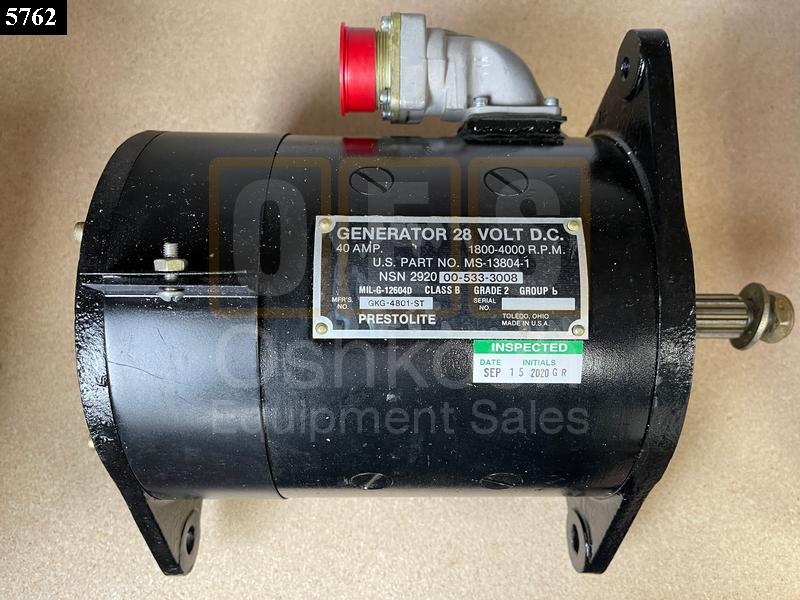

ENGINE ACCESSORY GENERATOR
- National Stock Number (NSN): 2920-00-533-3008, 2920005333008
- Federal Supply Class (FSC): 2920 (Engine Electrical System Components, Non-Aircraft-10)
- National Item Identification Number (NIIN): 005333008
- Federal Stock Number (FSN): 2920-533-3008, 29205333008
- Alternate Numbers: MILG12604, MS13804-1, 2920-00-302-6499, GKG4802ST
VOLTAGE IN VOLTS28.0
MAXIMUM OUTPUT CURRENT RATING IN AMPS40.0
MAXIMUM RATED ARMATURE SPEED IN RPM4000
ARMATURE MINIMUM SPEED IN RPM AT FULL CURRENT OUTPUT1875
MINIMUM CURRENT CUT-IN SPEED IN RPM1490
GROUNDING METHODINTERNALGROUND POLARITY TYPE NEGATIVE
SHAFT ROTATION DIRECTION CLOCKWISE
MOUNTING STYLE15 BRACKET MTD W/THREE MTG HOLES, TOP HOLE THREADED
DISTANCE BETWEEN SHAFT CENTER AND BOTTOM MOUNTING HOLE CENTER4.430 INCHES MINIMUM AND 4.450 INCHES MAXIMUM
DISTANCE BETWEEN SHAFT CENTER AND TOP MOUNTING HOLE CENTER4.430 INCHES MINIMUM AND 4.450 INCHES MAXIMUM
DISTANCE BETWEEN INSIDE SURFACES OF HINGE BRACKET7.521 INCHES MINIMUM AND 7.538 INCHES MAXIMUM
DISTANCE BETWEEN OUTSIDE SURFACES OF HINGE BRACKET 8.381 INCHES MINIMUM AND 8.598 INCHES MAXIMUM
BOTTOM MOUNTING HOLE DIAMETER0.525 INCHES MINIMUM AND 0.537 INCHES MAXIMUM
