MEP-002A MEP-OO2A 5 kW 60 Hz Diesel Generator
NSN: 6115-00-465-1044
TM numbers:
TM-5-6115-584-12
TO-35C2-3-456-1
NAVFAC P-8-622-12
TM-05682C-12
Expanded Description:
This unit is a 5 kilowatt, 60 Hertz Generator Set. It consists
of a revolving field alternator powered by an air cooled diesel

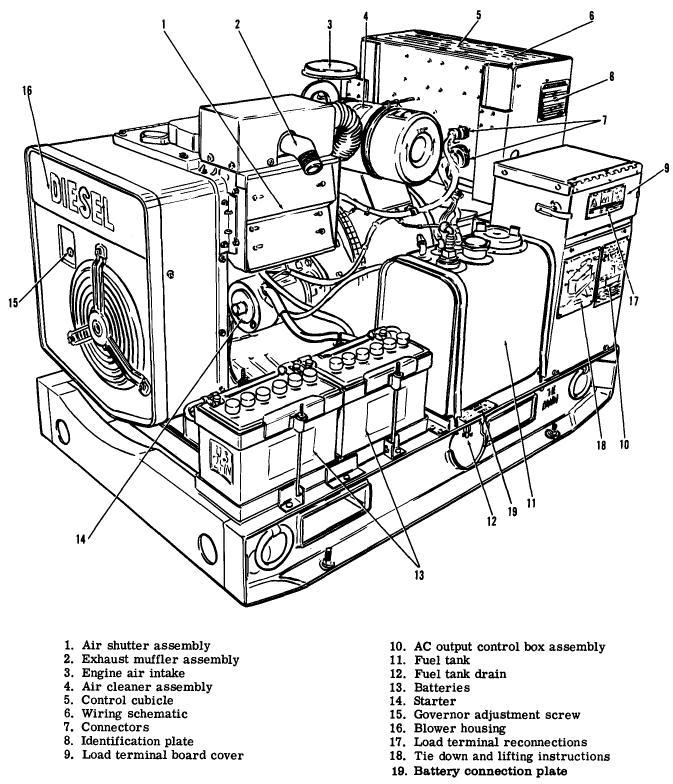

engine. See figures 1-1 and 1-2 for the location of major
components and figure 1-2.1 for generator with acoustic
suppression kit (ASK) installed.
Additional Notes:
The engine powering this Generator Set is a
2 cylinder, 4 cycle air cooled engine, with a 70 cubic
inch (cu. in.) displacement.
