Hydraulic Cylinder seal O-Ring. Fits several locations on M1083 MTV Oshkosh Truck Corporation

PACKING,PREFORMED. Oshkosh Truck Corporation. Unknown Application

O-RING PACKING PRE-FORMED. Oshkosh Truck Corporation. Unknown Application

O-RING PACKING PRE-FORMED. Oshkosh Truck Corporation. Unknown Application

O-RING PACKING PRE-FORMED. Oshkosh Truck Corporation. Unknown Application

O-RING Gasket. Oshkosh Truck Corporation. Unknown Application

O-RING PACKING PRE-FORMED. Oshkosh Truck Corporation. Unknown Application

O-RING PACKING PRE-FORMED. Oshkosh Truck Corporation. Unknown Application

O-RING PACKING PRE-FORMED. Oshkosh Truck Corporation. Unknown Application

O-RING PACKING PRE-FORMED. Oshkosh Truck Corporation. Unknown Application

O-RING PACKING PRE-FORMED. Oshkosh Truck Corporation. Unknown Application

O-RING PACKING PRE-FORMED. Oshkosh Truck Corporation. Unknown Application

Catterpillar D-ring O-ring Seal Kit.

Some items included are DSG 1P3705,DSG1P3709,1P3708.1P3706


SEAL,PLAIN ENCASED: Unknown Application
ACCOMMODATED SHAFT DIAMETER    2.625 INCHES NOMINAL
SEAL WIDTH                     0.485 INCHES MINIMUM AND 0.515
                                      INCHES MAXIMUM
CASE STYLE                     1 SQUARE
HOUSING BORE DIAMETER          3.750 INCHES NOMINAL
SEALING ELEMENT STYLE          4 ANGULAR
MATERIAL                       RUBBER SILICONE CLASS Q SEALING
                                      ELEMENT
MATERIAL DOCUMENT AND          MIL-S-45005,CL 2 MIL SPEC SINGLE
       CLASSIFICATION                 MATERIAL RESPONSE SEALING ELEMENT
SURFACE TREATMENT              CADMIUM CASE AND CHROMATE OR ZINC
                                      AND CHROMATE
SURFACE TREATMENT DOCUMENT     QQ-P-416,TY 2,CL 3 FED SPEC 1ST
       AND CLASSIFICATION             TREATMENT RESPONSE CASE OR
                                      QQ-Z-325,TY 2,CL 3 FED SPEC 2ND
                                      TREATMENT RESPONSE

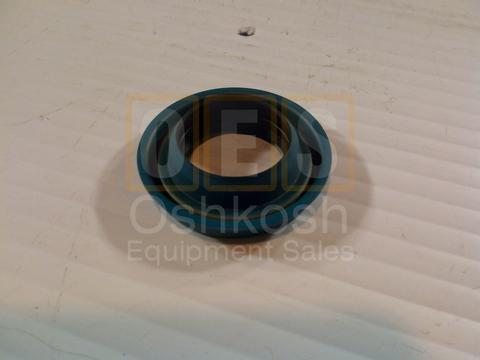

Automatic Transmission Output Shaft Seal, Part number 15966

Description--Grease Seal
Height--0.875 IN
Length--3.625 IN
Weight--0.114 LBS
Width--3.625 IN

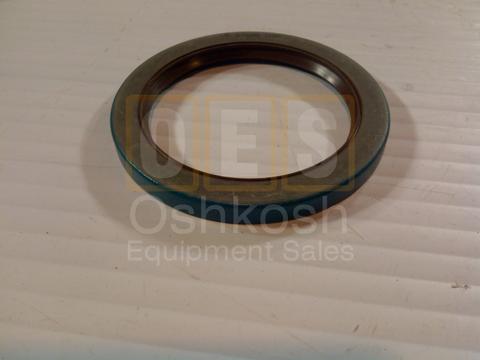

Chicago Rawhide Oil Seal Part number 33699

Inside diameter 3.375

Outside diameter 4.376

Width  .375

CROSS-SECTIONAL HEIGHT         0.135 INCHES MINIMUM AND 0.143 INCHES MAXIMUM
CENTER HOLE DIAMETER           0.911 INCHES MINIMUM AND 0.931 INCHES MAXIMUM

ACCOMMODATED SHAFT DIAMETER    2.750 INCHES NOMINAL
SEAL WIDTH                     0.500 INCHES NOMINAL
HOUSING BORE DIAMETER          3.751 INCHES NOMINAL

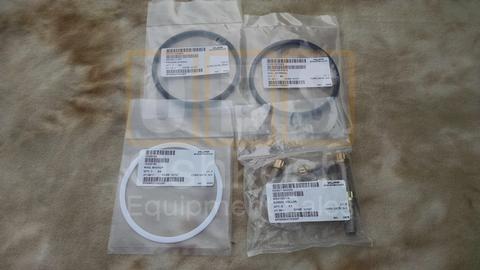

O-Ring for Transmission Filter Inlet and Outlet Hose on M915A2, M916A1, M916A2, and M917A1 Military Trucks.

Includes:
1 - Seal, External     NSN: 5330-01-081-0805      P/N P25004750-P4615
1 - Packing (O-Ring) NSN: 5331-01-183-0985      P/N M83461/1-427
6 - Screw, Collar      NSN: 5306-01-195-5809      P/N MS21098-76
1 - Ring, Backup      P/N 12335160
