$2.49

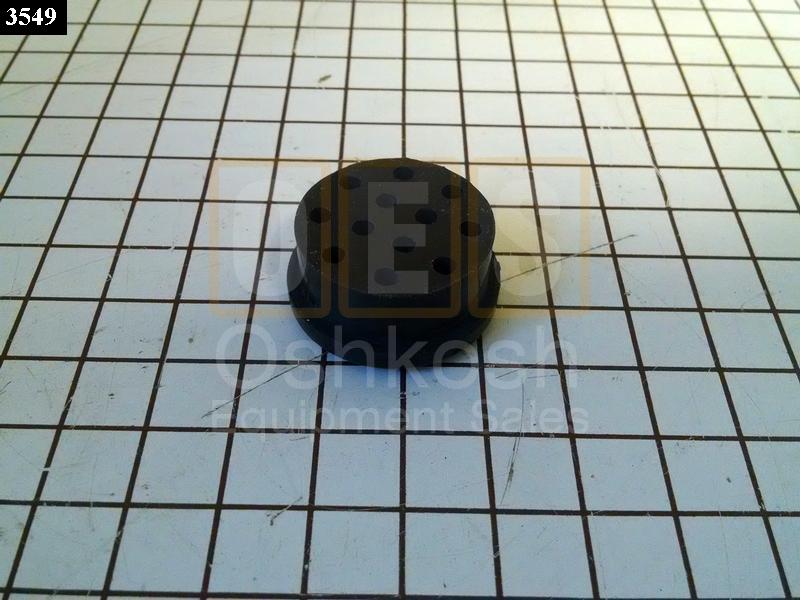

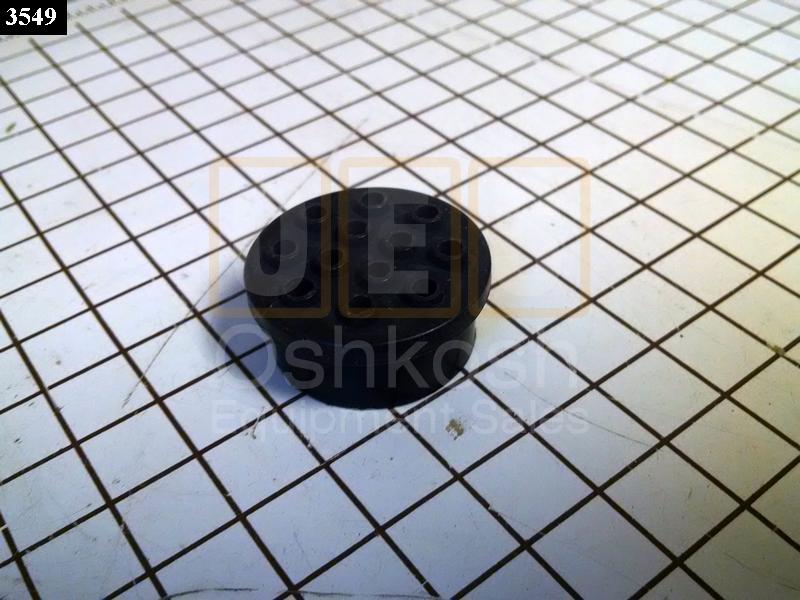

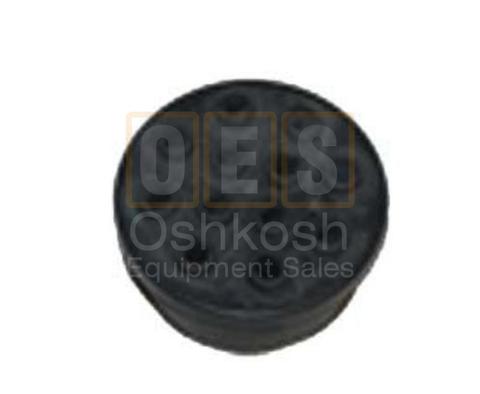

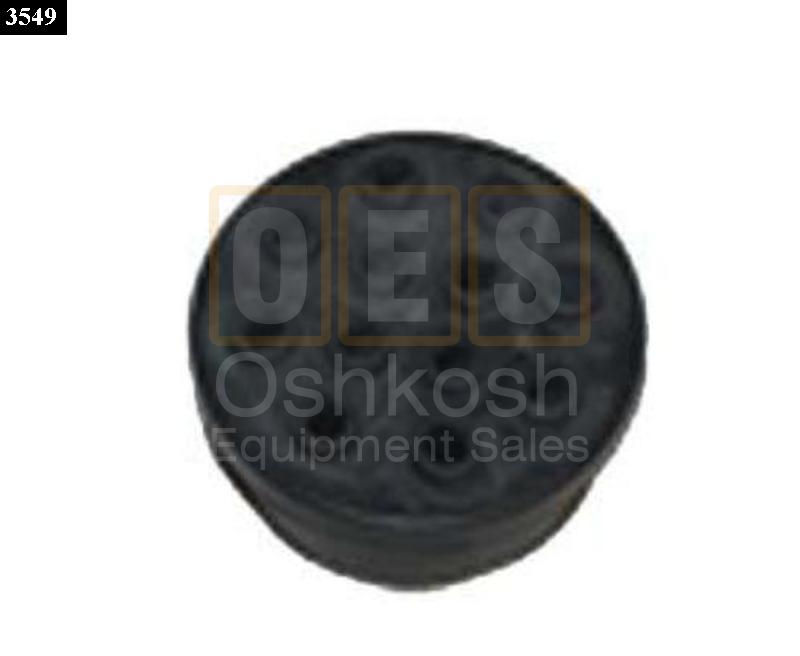

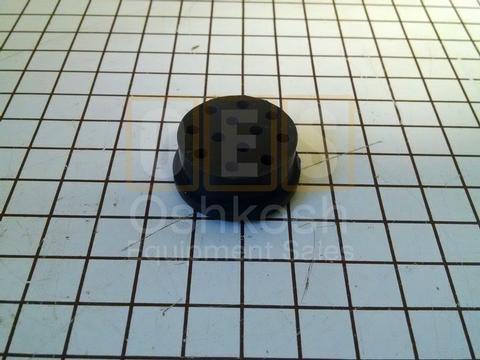

Rubber Grommet
- Military Part Number: 7722333
- Military Description:
BUSHING,NONMETALLIC
- National Stock Number (NSN): 5365-00-090-5426, 5365000905426
- Federal Supply Class (FSC): 5365 (Rings, Shims and Spacers)
- National Item Identification Number (NIIN): 000905426
- Federal Stock Number (FSN): 5365-090-5426, 53650905426
Rubber Grommet for Military Trucks and Trailers.
HOLE DIAMETER 0.140 INCHES NOMINAL
OVERALL LENGTH 0.657 INCHES NOMINAL
FLANGE DIAMETER 1.406 INCHES NOMINAL
BODY DIAMETER 1.240 INCHES NOMINAL
BODY LENGTH 0.438 INCHES NOMINAL
FLANGE HEIGHT 0.156 INCHES NOMINAL
HOLE QUANTITY 12
This item fits the following series and models of equipment:
M1063
XM1063
M127
M127 , M127A1 , M127A1C , M127A2C , M128A1 , M128A1C , M128A2C , M129A1 , M129A1C , M129A2C
M172A1
M172A1
M197
M197 , M197A1 , M198 , M198A1
M269
M269 , M269A1 , M270 , M270A1
M295A1
M295A1 , M313 , M447 , M447C , M749 , M750
M747
M747
M870
M870 , M870 Marine Variation , M870A1
M871
M871 , M871A1
M969A2
M969A2
M991
XM991 , XM991E1 , XM991E2 , XM995 , XM995E1 , XM995E2
